The Ultimate MPU TEST CARD is designed to work only with the ULTIMATE MP...
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

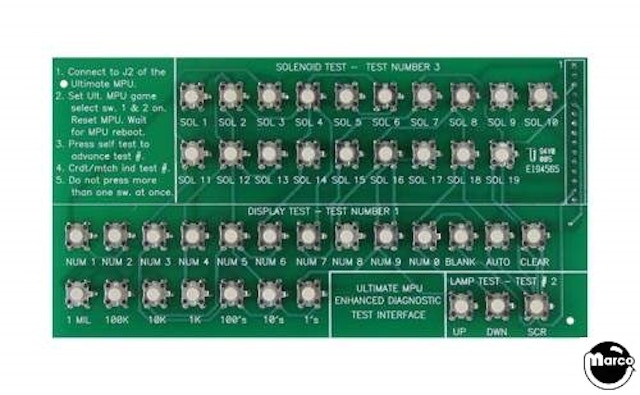

The Ultimate MPU TEST CARD is designed to work only with the ULTIMATE MPU BOARD. Together, they can simulate professional bench test systems costing thousands of dollars and make troubleshooting your game much easier.
The easy to use test card plugs into the J2 connector of The Ultimate MPU Board. Setting the game select dipswitch to Enhanced Diagnostics Mode activates the test.
Carry it in your toolbox. Actual Size: 3" * 6"
Manual included. Instructions also silk-screened on board.
Individually labeled switches. No need to memorize anything.
Improved Solenoid Test - One solenoid can be activated at a time.
No more cycling through all solenoids just to test one!
Improved Lamp Test - Allow you to activate one lamp at a time. Useful when you have a couple of lamps out that need to be repaired. Or you can activate lamps by rows and columns.
Improved Display Test - Any digit can be inserted in any display position. Troubleshooting bad digits on a display is now a snap! Board plugs onto the Ultimate MPU Board.
Only one test card needed if you have multiply Ultimate MPU Boards.
Only works with the Ultimate MPU Board.
Made and assembled in the USA. HERE are more details.
Reference:
ULTEST
