Molex/Waldom® Hand Crimper tool is ideal for fastening crimp terminals
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Molex/Waldom® Hand Crimping tool is ideal for attaching crimp terminals to wires for connector repairs.
Eases installation of non-insulated .062", .093", .100", .156" crimp terminals and others to 18-30 AWG (American Wire Gauge) size wires.
Good for use on these Molex® part number terminals:02-06-2132 male .062" diameter
02-06-1132 female .062" diameter02-06-2103 male .062" diameter02-06-1103 female .062" diameter02-09-1144 male .093" diameter02-09-2143 female .093" diameter08-50-0114 mini KK terminals08-50-0108 standard KK terminals
Reference:
77-CTW
Waldom/Molex crimper WHT-1921
CRIMPING INSTRUCTIONS:

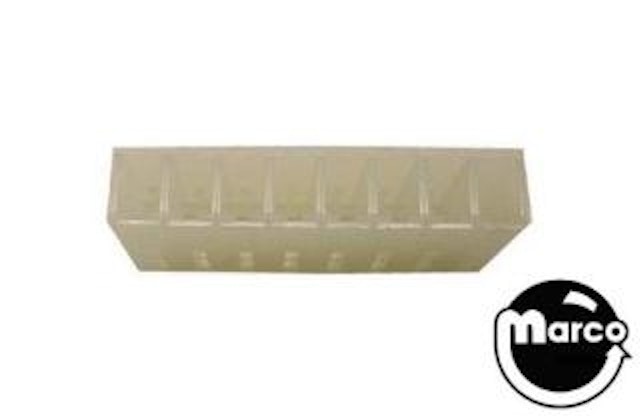

.156 inch 8 Position female molex housing.

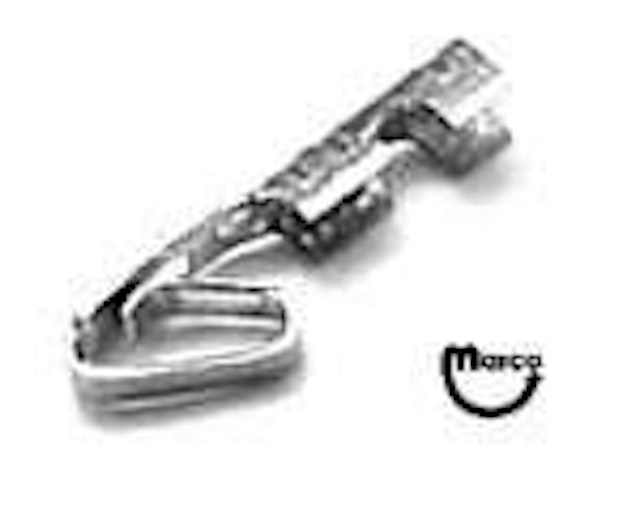

Crimp terminal .100 inch standard

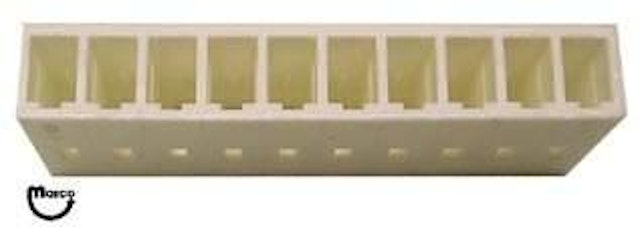

.156 inch 10 Position female molex housing.
0.156 inch on center spacing Trifurcon crimp terminals for 18-20 AWG wire.
.156 inch 20 Position female molex housing.

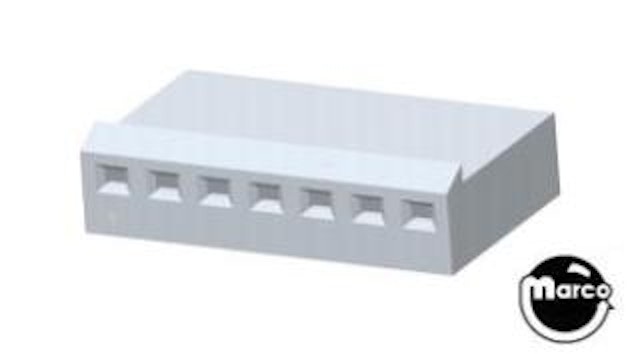

Connector .156 inch 7 position female 26-03-4070

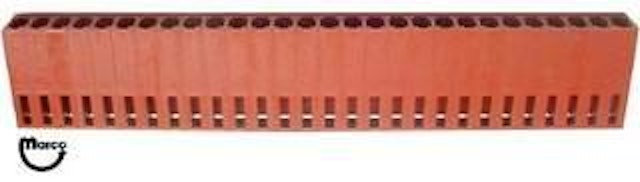

.100 inch 28 Position female molex housing.
