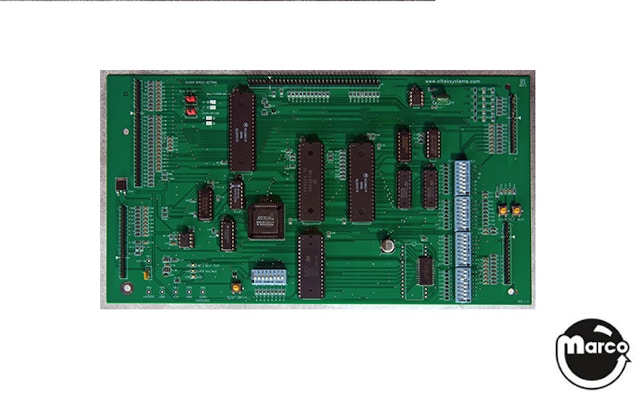

Replacement MPU board for Bally or Stern coin op pinball machine
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
The last MPU board you'll ever need! If you own a Bally or Stern coin op pinball machine with an AS-2518-35 or AS-2518-17, AS-2518-133, AS-2962-7, A084-91603-AA44, C-433-110, MPU100 or MPU200 MPU board, this board is for you!
It's a plug and play replacement that has every classic Bally and Stern pinball game program ROM on board. The Ultimate MPU board is a NEW and ENHANCED COMPUTER for your pinball machine. Some of the many features are:
All 93 games are dip-switch selectable.
New FREEPLAY setting for most games!
No batteries required. Simtek® chip with 100 year memory retention warranty
New advanced diagnostics.
Over-voltage protection circuit.
Auto-resetable fuse protection.
On-board Self-Test button.
Full static protection of on-board IC's.
Test points for all DIP switches for easy testing.
One chip reset replaces the original 16-component reset from old board.
On-board reset switch for easy reset without game cycling.
On-board memory clear switch.
On-board power monitoring LED indicator.
Automatic zero-crossing detector circuit - No jumper required.
Easy read instructions for fast installation game repair.
Half size board fits existing mounting rails.
New, improved built in diagnostic program provides a Burn In feature and enhanced troubleshooting when used with optional ULTIMATE TEST CARD.
All board components labeled for easy identification.
Test points that allow easy troubleshooting.
Schematic and manual included and available online. Email and phone support.
Lifetime warranty for home or commercial use.
Made and assembled in the USA.
Here's one INSTALLATION VIDEO:
For more information or questions email: ALLTEKSYSTEMS.COM
Lifetime warranty - best in the industry.
On-line support: MANUAL, SCHEMATICS, E-MAIL
OTHER GAMES supported:
SEXY GIRL
BIG BALL BOWLING
BLACK SHEEP SQUADRON
GENESIS PUCK BOWLER
BLACK BEAUTY SHUFFLE
BIG BAT BASEBALL
New FATHOM
New VECTOR
Please note: NOT compatible with the home versions of FIREBALL, CAPTAIN FANTASTIC, or EVEL KNIEVEL.

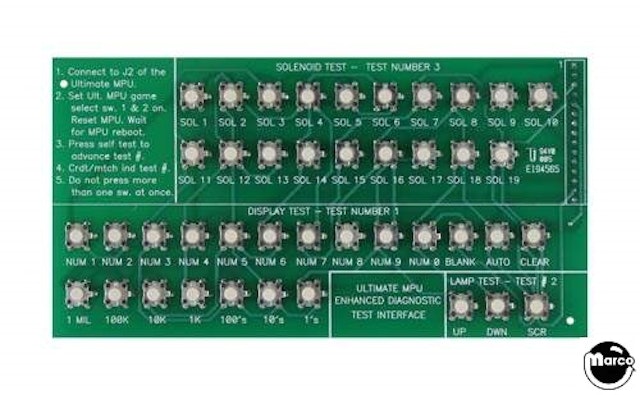

Also check out the companion ULTIMATE TEST CARD Test Fixture (Item No.ULTEST) to help diagnose other problems with your 1977-1984 Bally or Stern pinball machine. Order both the ULTIMATE MPU & TEST CARD (Item No.ULTCOMBO) and SAVE $10.00.
Select manufacturer to view game compatibility
NEW! From the makers of the world famous ULTIMATE MPU Board for pre 1984...
From the makers of the ULTIMATE Bally/Stern MPU board and ULTIMATE Bally/S...

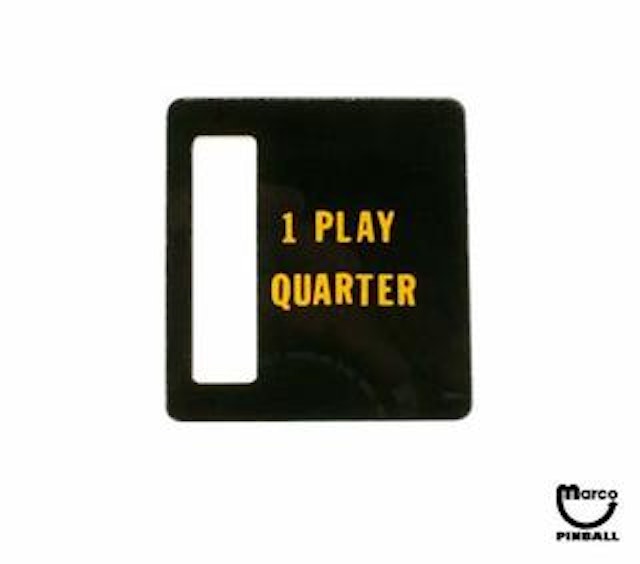

Screened plastic Price Plate with coin chute opening for early Bally pinba...

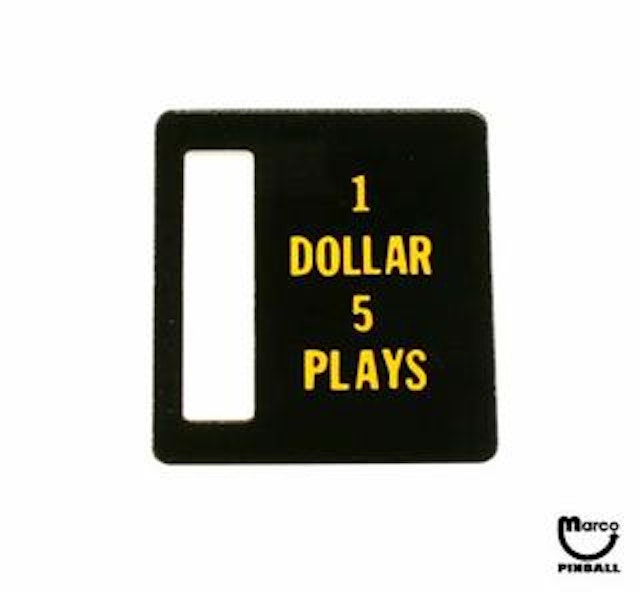

Screened plastic Price Plate with coin chute opening for early Bally pinba...
Rectifier board Bally AS-2518-18,49 / Stern TA-100

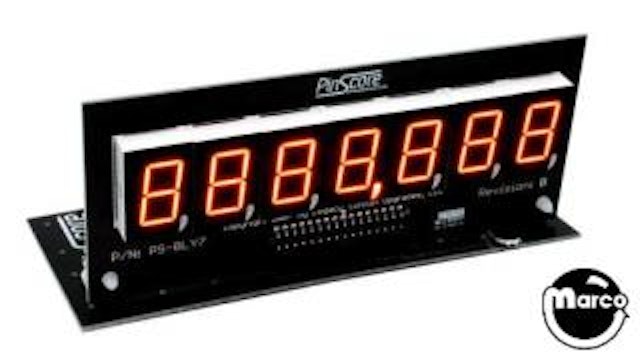

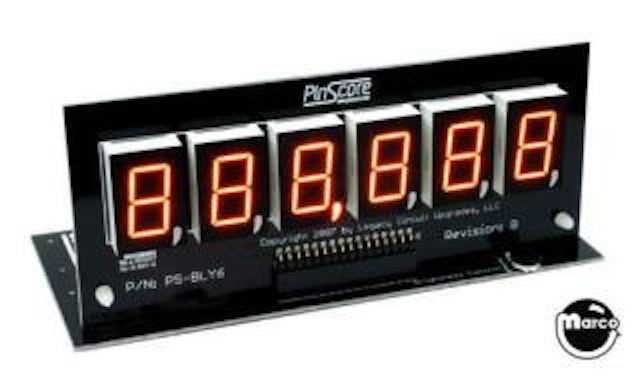

PinScore Premium Pinball LED Displays New PinScore™ Displa...
PinScore Premium Pinball LED Displays New PinScore™ Di...
The Ultimate MPU TEST CARD is designed to work only with the ULTIMATE MP...

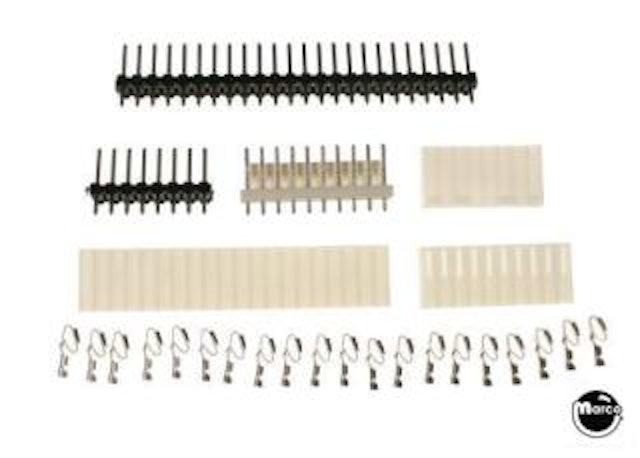

Connector rebuild kit for wiring harness and board headers on all Bally and SEI Stern boards

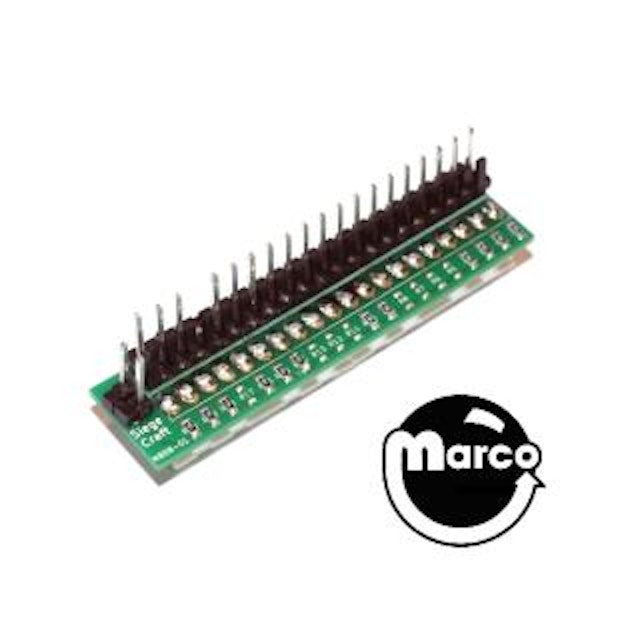

LED flicker eliminator kit Bally aux lamp board AS-2518-43
