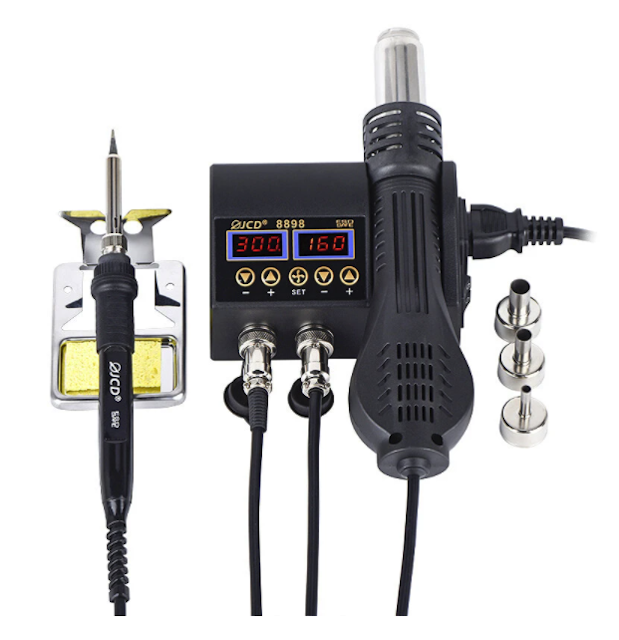

Solder and desolder hot air SMD station - economy
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Variable temperature digital Hot Air Surface Mount device solder and desolder station
Economy soldering/desoldering station for SMD circuit board rework.

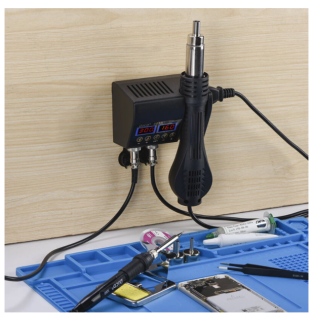

Soldering iron may be wall mounted to save workbench space.
Solder and un-solder SMD capacitor packages (0603, 0805, 1206), SMD diode package (LL34), transistor (SOT23), and other tiny surface mount devices.
Features:
Temperature Control Technology - Embedded high precision PID temperature control program monitors and corrects the actual temperature of each tool quickly and accurately.Anti-static Design - prevents static or current leakage damage to components.Air flow protection - automatically alarms and disables hot air heating core power supply for safety if the fan should stop.Digital temperature correction - corrects temperature deviation caused by environmental changes, heater replacement, soldering tip, or other components.Centigrade/Fahrenheit programmable, temperature correction function, sleep function, selectable cool air / hot air.1 year warranty.
Package contents:
Model 8898 2 in 1 Hot Air Rework and Soldering StationRemovable 80W solder iron with silicone cordSolder iron tips (10 pieces)Hot air nozzles - 3 sizes (0.17''(4.4mm), 0.27''(7.0mm), 0.35''(9.0mm)
Specifications:
Model: 8898Total power consumption: 750WAir flow type: brushless fan with soft airMax air flow volume: 120L/minHeat gun temp range: 212 ~ 896°F/100 ~ 480°C with auto cool down safety featureHeat gun temp. stability: ±3.6°F/±2°CHeat gun tube material: 100% SiliconeSolder iron temp. range: 392 ~ 896°F/200 ~ 480°CSolder iron temp. stability: ±1.8°F/±1°CSolder iron cord material: 100% siliconeProduct size: L5.83'' x W3.90'' x H5.28''/ L148 x W99 x H134mmUnit weight: 6.2 Lbs (2.8KG)110V～127V/AC, 60Hz North America plug
Reference:
77-SSSMD-E
