Solder and desolder hot air SMD station
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

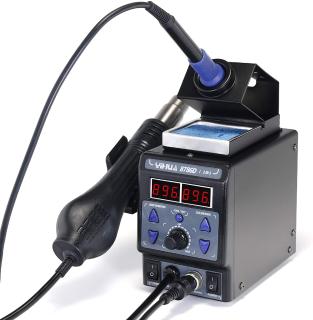

Variable temperature digital Hot Air Surface Mount device solder and desolder station
Economy soldering/desoldering station for SMD circuit board rework.
Includes starter supply kit with desoldering wick, hand vacuum pump, and lead free solder spool.
Soldering iron may be top mounted to save workbench space.
Solder and un-solder SMD capacitor packages (0603, 0805, 1206), SMD diode package (LL34), transistor (SOT23), and other tiny surface mount devices.
Features:
Temperature Control Technology - Embedded high precision PID temperature control program monitors and corrects the actual temperature of each tool quickly and accurately.Anti-static Design - prevents static or current leakage damage to components.Air flow protection - automatically alarms and disables hot air heating core power supply for safety if the fan should stop.Digital temperature correction - corrects temperature deviation caused by environmental changes, heater replacement, soldering tip, or other components.Centigrade/Fahrenheit programmable, temperature correction function, sleep function, selectable cool air / hot air.1 year warranty.

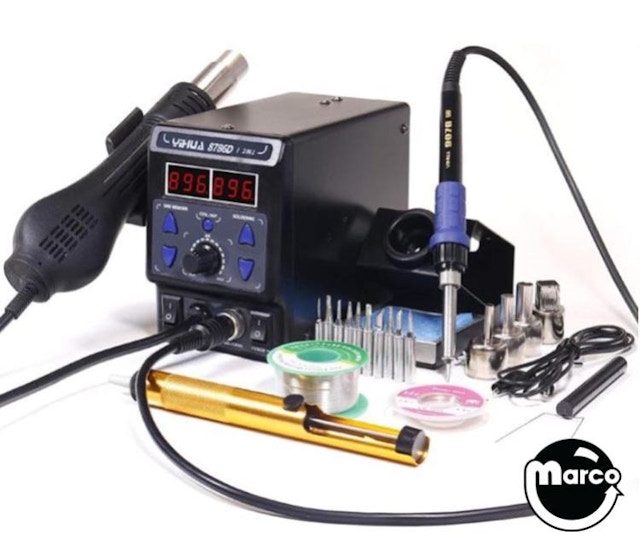

Package contents:
Model 8786D 2 in 1 Hot Air Rework and Soldering StationRemovable 60W solder iron with silicone cordSolder iron stand with blue spongeExclusive programmable hot air gunSolder iron tips (10 pieces)Hot air nozzles - 4 sizes (0.17''(4.4mm), 0.27''(7.0mm), 0.35''(9.0mm) and 0.47''(12.0mm)Lead-free solder (0.03'', 0.11 Lbs/ 0.8mm, 50g)IC removal toolSolder wickDesoldering pump
Specifications:
Model: 8786DTotal power consumption: 700WAir flow type: brushless fan with soft airMax air flow volume: 120L/minHeat gun temp range: 212 ~ 896°F/100 ~ 480°C with auto cool down safety featureHeat gun temp. stability: ±3.6°F/±2°CHeat gun tube material: 100% SiliconeSolder iron temp. range: 392 ~ 896°F/200 ~ 480°CSolder iron temp. stability: ±1.8°F/±1°CSolder iron cord material: 100% siliconeProduct size: L5.83'' x W3.90'' x H5.28''/ L148 x W99 x H134mmUnit weight: 6.2 Lbs (2.8KG)110V～127V/AC, 60Hz North America plug
