Score drum unit Chicago Coin Machine with EOS
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Score drum unit without EOS switch for Chicago Coin Machine games.
Ships un-assembled.
Reference:
500-2565-A Score drum unit assembly - no EOS
500-2565-D Score drum unit assembly - with EOS 0-9,10-90, 100-900
500-2565-E Score drum unit assembly - with EOS
Select manufacturer to view game compatibility
Operating arm CCM
1/8" diameter x 3/8" length slotted spring roll pin. Reference: 20-8...
fw .172x .375x .036 brass
1-11/16" overall length coil sleeve.
Machine screw 8-32 x 3/8 inch phillips pan head.
Sheet Metal Screw #4 x 3/8" p-ph
Plunger stop bushing Chicago Coin Machine
Plunger stop and slug assembly Chicago Coin Machine
Score drum unit operating plunger Chicago Coin Machine
Adjustable stop Chicago Coin Machine
Nut with 10-32 thread and elastic stop top (esn) 238-1306-00
Coil - solenoid
Contact plate circuit board for Chicago Coin Machine games.
Machine screw with 6-32 thread and 3/8 inch long with phillips pan head.
Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
Hub and ratchet CCM
Coil stop bracket CCM
Score drum unit plunger and arm assembly CCM
Machine Screw 6-32 x 3/16 inch p-ph

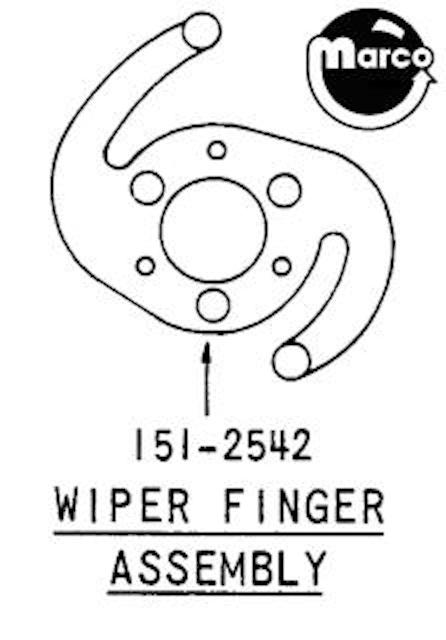

Wiper finger spider CCM
