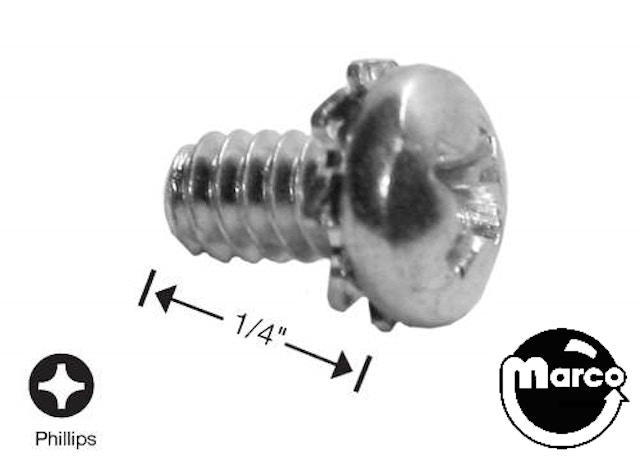

Machine screw 6-32 thread x 1/4 inch long with phillips head and external tooth lock washer
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
6-32 x 1/4" phillips head machine screw with integrated external tooth lockwasher
(SEMS is a fastener industry term that refers to a screw or bolt which has a captive washer.)
Reference:
4008-01003-04
232-5300-00
232-5200-00
SC00100-02

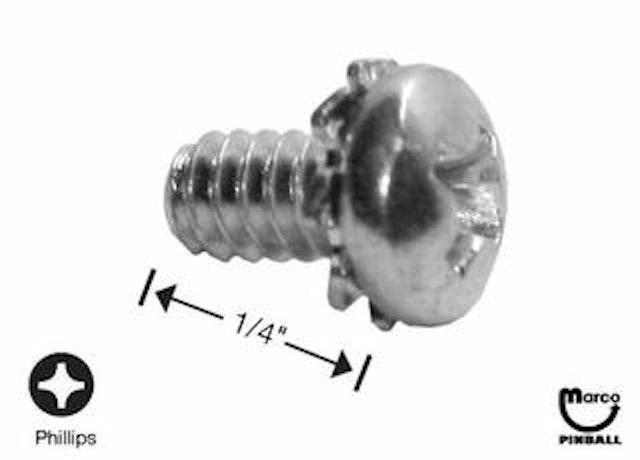

Replaces 4006-01017-04 round head with sems
Fastener part numbering system explained:
The last 2 digits (XX) of the 4 digit fastener part number prefix (40XX-12345-12) indicates the standard stud size of the bolt or screw. For example, part No.4006-01030-12 indicates a No.6 stud diameter (.138") fastener.
The 2 digit part number suffix for bolts and screws (-12, -04, -16, etc) indicates the number of 1/16" length increments of the fastener. For example, part No.4004-01003-04 indicates a screw that is 4/16" long or 1/4" long.
Basic diameters and threads of Standard SAE (Society of American Engineers) numeric system small machine screws are shown below.
The diameters of machine screws are indicated with the number of threads per inch. Here is a list of common sizes in inches:
2-56: 0.0860" or 43/500" diameter; 56 threads per inch
4-40: 0.1120" or 14/125" diameter; 40 threads per inch
5-40: 0.1250" or 1/8" diameter; 40 threads per inch
6-32: 0.1380" or 69/500" diameter; 32 threads per inch
8-32: 0.1640" or 41/250" diameter; 32 threads per inch
10-32: 0.1900" or 19/100" diameter; 32 threads per inch
10-24: 0.1900" or 19/100" diameter; 24 threads per inch
12-24: 0.2160" or 27/125" diameter; 24 threads per inch
Select manufacturer to view game compatibility
Machine Screw 6-32 x 3/8" long phillips pan head with external tooth lockw...

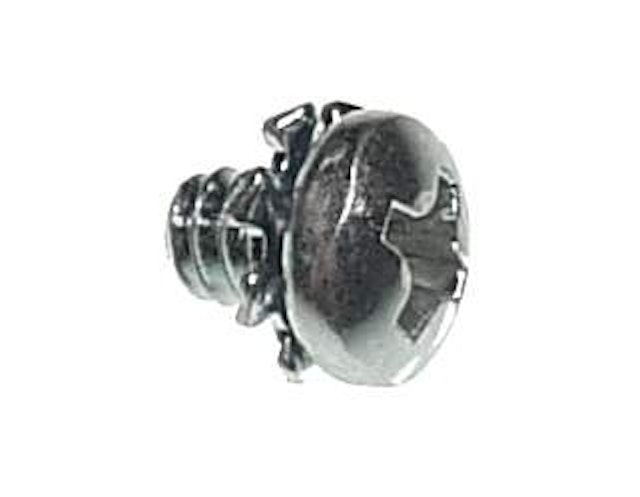

Machine screw with 6-32 thread and 3/16" long with phillips pan head and attached lockwasher.
Machine screw with 6-32 thread and 1/4" long with phillips pan head...

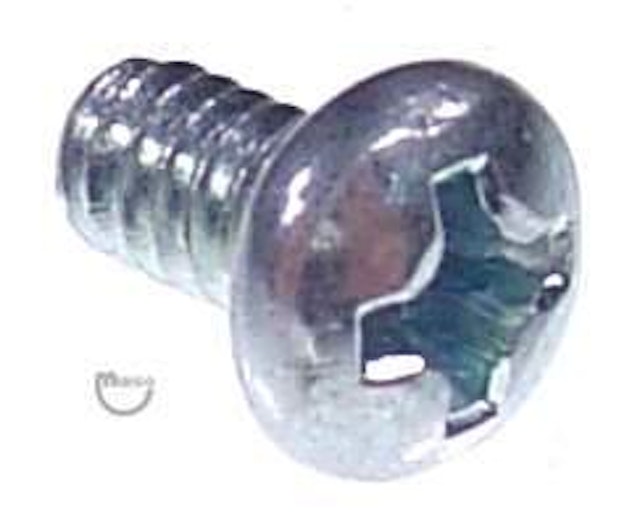

Machine Screw 6-32 x 1/4 inch p-ph black

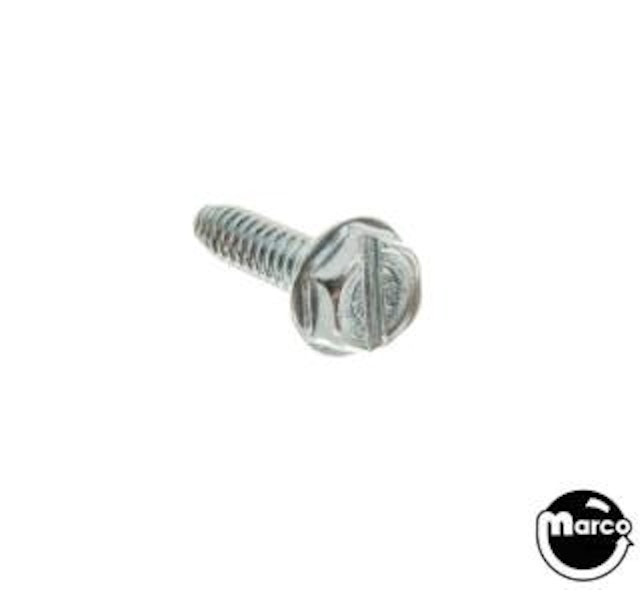

Screw 6-32 x 1/4" hex washer head Swage
