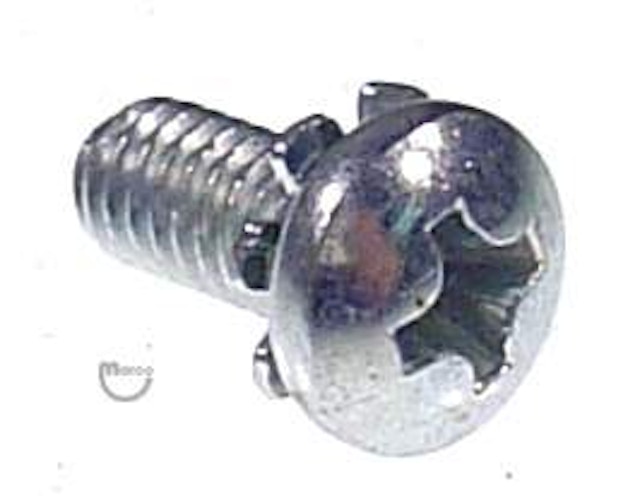

Machine Screw 8-32 x 3/8 inch p-ph-sems 232-5301-00
Machine screw 8-32 x 3/8 inch phillips pan head.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Product Details
Machine screw with 8-32 thread x 3/8 inch long phillips pan head zinc finish wih external tooth lockwasher.
(SEMS is a fastener industry term that refers to a screw or bolt which has a captive washer.)
Reference:
4008-01003-06
Replaces 4008-01017-06
Replaces 232-5301-00
SC00101-03
Fastener part numbering system explained:
The last 2 digits (XX) of the 4 digit fastener part number prefix (40XX-12345-12) indicates the standard stud size of the bolt or screw. For example, part No.4006-01030-12 indicates a No.6 stud diameter (.138") fastener.
The 2 digit part number suffix for bolts and screws (-12, -04, -16, etc) indicates the number of 1/16" length increments of the fastener. For example, part No.4004-01003-04 indicates a screw that is 4/16" long or 1/4" long.
The middle 5 digits describe the fastener head style or other features.
