3 terminal, dual winding flipper coil is used on the following games:...
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

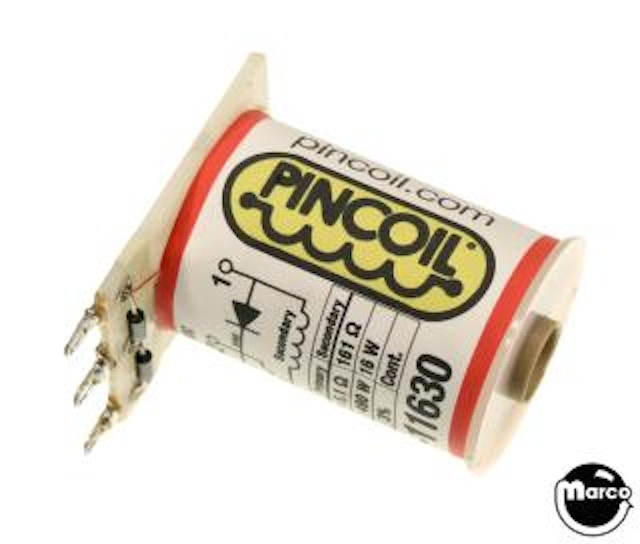

3 terminal, dual winding flipper coil with 1N4004 diodes for Bally/Williams pinball machines.

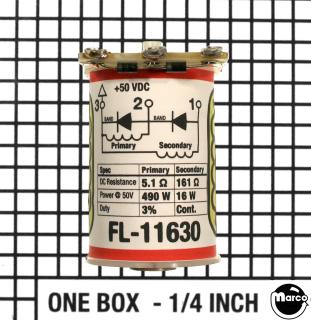

FL-11630 "standard" flipper strength, parallel coils, used on nearly all Williams system 11 pinball games (original red coil wrapper)
Primary winding (power) ~4.7 ohms (no diode)Secondary winding (hold) ~160 ohms (no diode)
The following games use multiple coil part numbers in different playfield locations:
F-14 TOMCAT (FL-11630 lower flippers)(FL-11722 used on uppers)
BIG GUNS (FL-11630 lower flippers)(FL-11753 used on uppers)
SWORDS OF FURY (FL-11630 lower flippers)(FL-11753 used on uppers)
EARTHSHAKER (FL-11630 lower flippers)(FL-11722 used on uppers)
FUNHOUSE (FL-11630 lower flippers)(FL-11753 used on uppers)
Williams / Bally pinball machines flippers are designed for a balance of power based on the layout of a given game. Always use the specified coil number for your machine.
Always install a flipper rebuild kit before changing coils (see related items below).
The factory recommends a complete flipper rebuild every 500,000 cycles or flips. If you must adjust flipper strength, here is a list of coil numbers and their relative strength going from weakest to strongest:
FL-11753 Yellow - Used with short flippers and close shots
FL-11722 Green - Used for close shots near drop targets
FL-15411 Orange - Used for long playfield shots
FL-11629 Blue - Used for long shots and high ramps
All coils include new sleeves (coil tubing) where applicable.
Reference:
FL-11630
Wico 04-071800
