.156 inch pin spacing 10 Position rear-entry housing
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

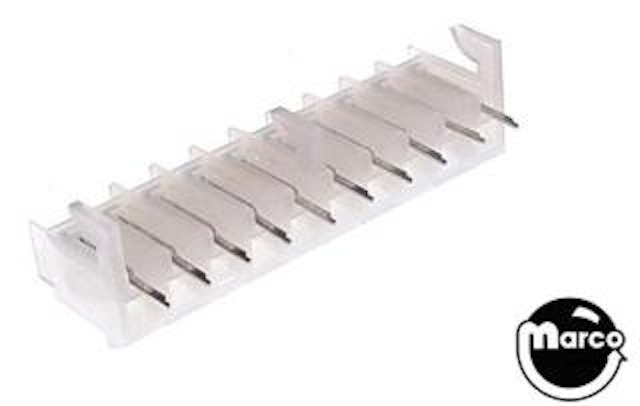

0.156" pin spacing 10 position rear-entry housing
Used on early solid state Williams CPU board to driver board interconnection.
Installation Tip:
When replacing all the connectors between a Williams CPU and Driver board (order 4 connectors for a total of 40 pins for the interconnection), be sure to change the male connector pins to square style ones instead of the original round pins. The original round pins don't provide enough mating surface area to ensure reliable current carrying capacity.

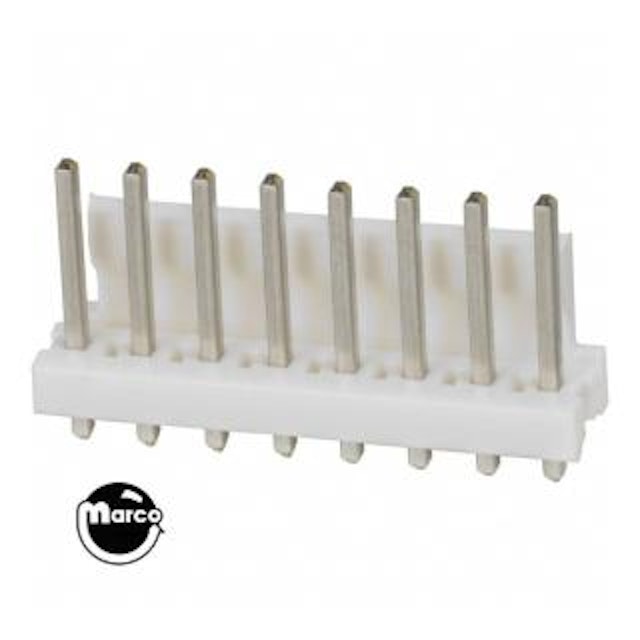

You can order either (5) CM15608 or (4) CM15610 male connectors for a total of 40 pins. See related items below.
Reference:
CFREH10
CFREH
5A-9066
5792-09066-00
09-52-3082
09-52-3102
Select manufacturer to view game compatibility
.156 inch 10 position male header
.156 inch pin spacing 8 Position rear-entry housing
Connector .156 inch 7 position male header locking
.156 inch 8 Position male molex header. Williams# 5791-12273-0...

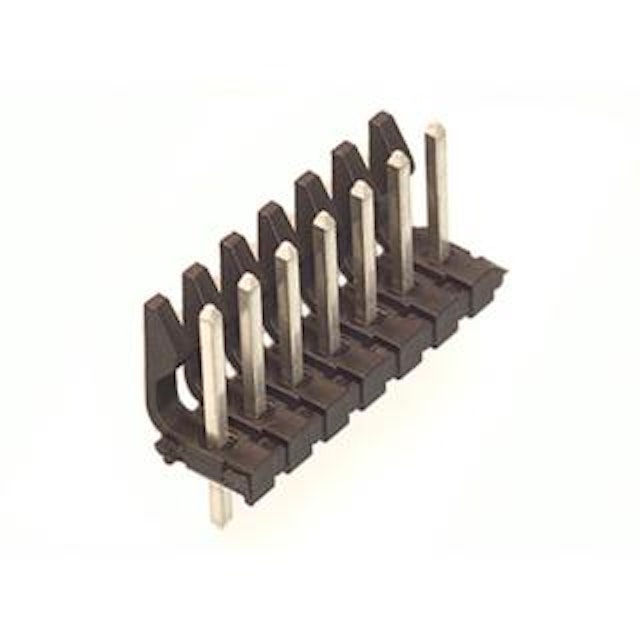

.156 inch 7 position male header with shroud
