.156 inch pin spacing 8 Position rear-entry housing
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

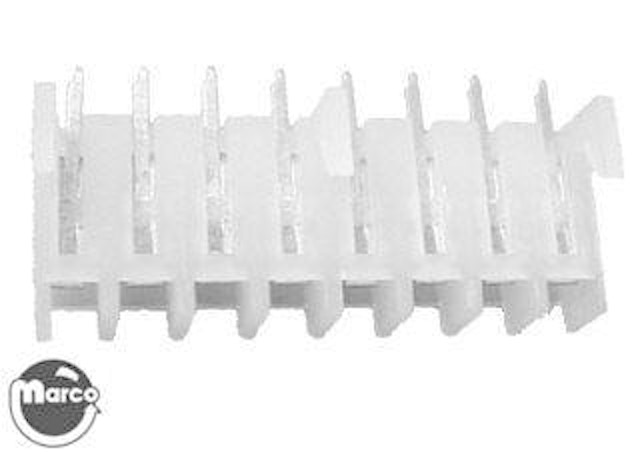

.156 inch pin spacing 8 Position rear-entry housing.
Used on early solid state Williams pinball machine CPU board to driver board interconnection.
Installation Tip:
When replacing all the connectors between a Williams CPU and Driver board (order 5 connectors for a total of 40 pins for the interconnection), be sure to change the male connector pins to square style ones instead of the original round pins. The original round pins don't provide enough mating surface area to ensure reliable current carrying capacity.
You can order either (5) CM15608 or (4) CM15610 male connectors for a total of 40 pins. See related items below.
Reference:
CFREH
5A-9066
5792-09066-00
09-52-3082
