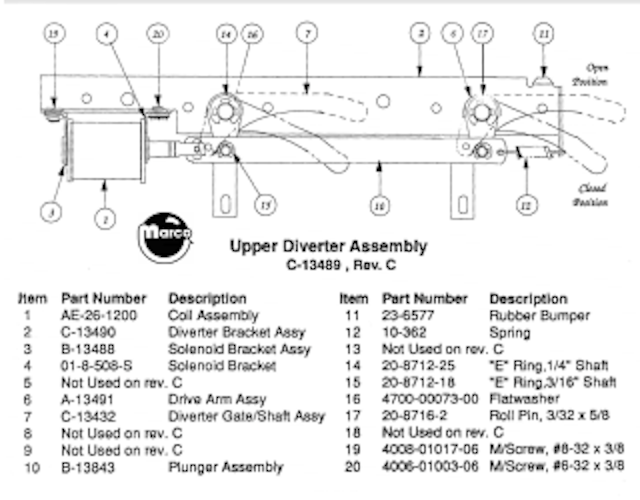

ROLLERGAMES (Williams) Diverter assembly
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Williams ROLLERGAMES pinball machine upper diverter assembly Revision C.
Ships un-assembled.
Reference:
C-13489

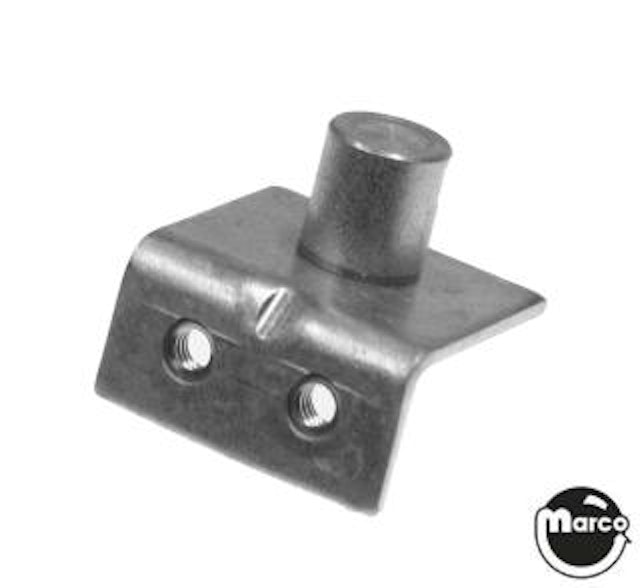

ROLLERGAMES (Williams) Coil stop
Coil retainer bracket used on many Williams & Bally machines including:...
ROLLERGAMES (Williams) Diverter drive arm
Plunger and link assembly

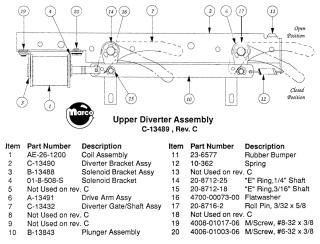

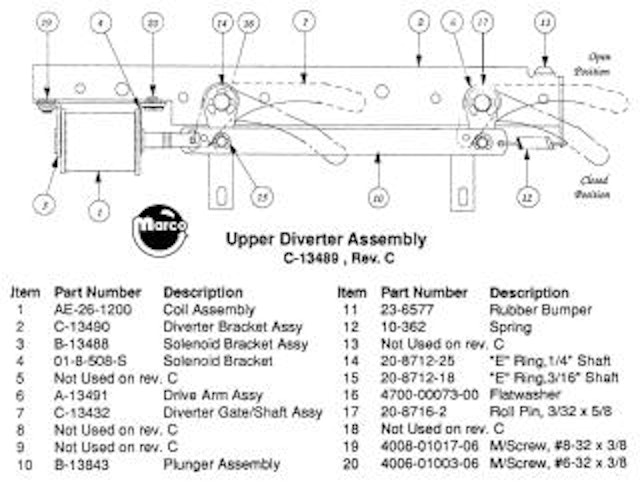

ROLLERGAMES (Williams) Diverter bracket
Black rubber grommet, bumper plug. Reference Numbers: Williams #2...
E-clip or e-ring commonly used on many mechanisms. 20A-8712-25 270-5002-00
Washer .281 x .500 x .032 inches

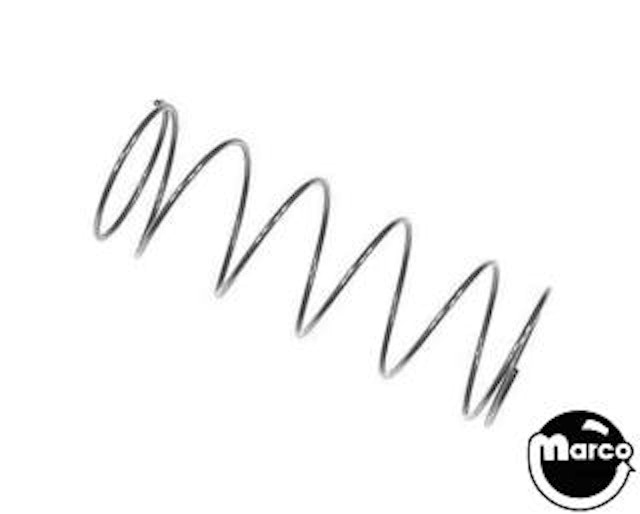

Spring - compression master
Plunger Reference: 02-4241
Spring - extension - red eject
Machine Screw 6-32 x 3/8" long phillips pan head with external tooth lockw...
Spring - extension diverter plunger

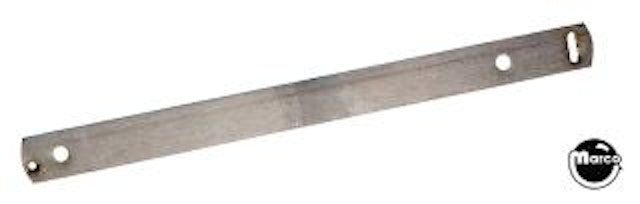

Drive link Williams
3/32" diameter x 5/8" length slotted spring roll pin. Reference: 20...
1/8" diameter x 7/16" length slotted spring roll pin. Reference:...
E-clip or e-ring commonly used on many mechanisms. 7/16 in. measured at the o...
Machine screw 8-32 x 3/8 inch phillips pan head.
