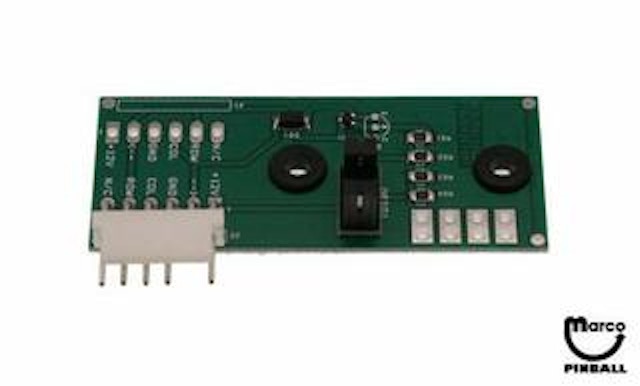

Opto board - single drop target 5768-12222-00
New design opto assembly for single drop target assembly C-11212-2
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Product Details
New design opto assembly for single drop target assembly C-11212-2.
Reference:
C-11903
C-11903-R
C-11212-2 assembly
5768-12222-00 circuit board
5768-12222-00 PC Board
5490-10159-00 Opto Interruptor, Mdl, SIG
5070-08919-00 Diode, lN4148,150 mA (Dl)
5010-09162-00 Resistor, 100K, 5%, 114w (R4)
5010-09536-00 Resistor, 820R, 5%, 114w (R3)
5010-09324-00 Resistor, 27K, 5%, 114w (Rl)
5010-08930-00 Resistor, 470R, 5%, 112w (R2)
5190-10270-00 Transistor, 2N3906, PNP, TO92
16-8850-190 Label, PC Identification
El-1 24 Cement, RTV Silicone
5791-10869-06 Header, 6-pin WA sq pin (J2)
