Williams CYCLONE pinball machine single drop target assembly
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

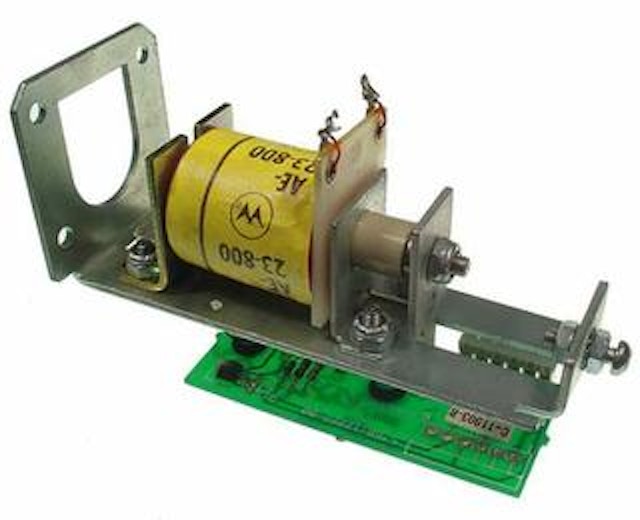

Williams pinball machine single drop target assembly with coil and circuit board.
Ships un-assembled
Reference:
C-11212-2 assembly
5768-12222-00 circuit board
Replaced by C-11903
Select manufacturer to view game compatibility
Bracket - coil mounting
Williams / Bally black plastic drop target with 3/8" wide wedge shaped top...

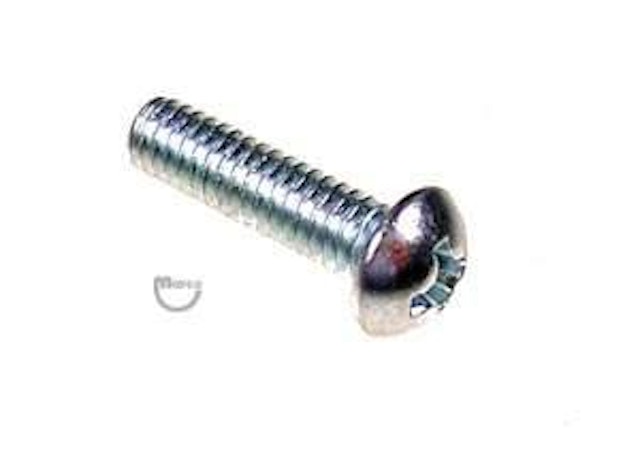

Machine Screw 8-32 x 5/8" long phillips roundhead.
Compression spring.

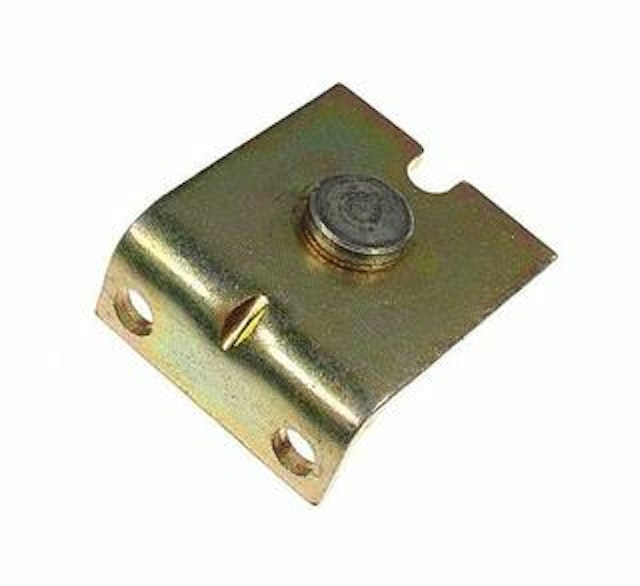

Coil stop bracket for target mechanisms.
Flipper return and drop target return spring
Nylon coil sleeve - 2-1/16 inch
fw .250 X.500x.032
Rubber grommet - 3/8 inch OD
Washer .187 x .437 x .053 inch #8 SAE
Common solenoid coil with no diode.

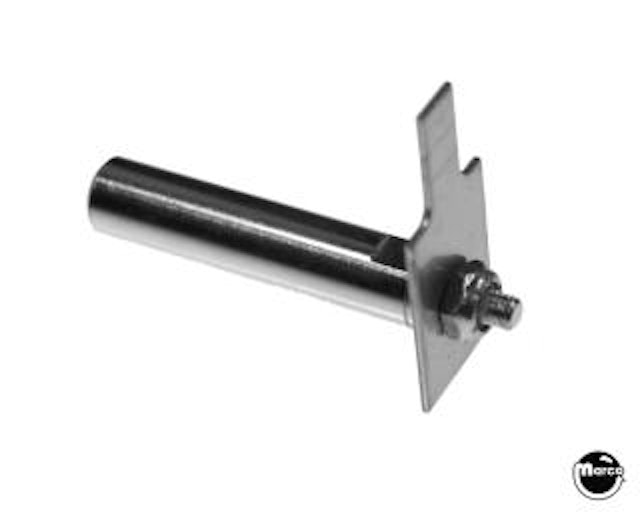

Plunger and reset plate assembly
Drop target bracket Williams 1 bank
Elastic stop nut used on the thumper bumper brackets and other mechanisms.
E-clip or e-ring commonly used on many mechanisms. 20A-8712-25 270-5002-00

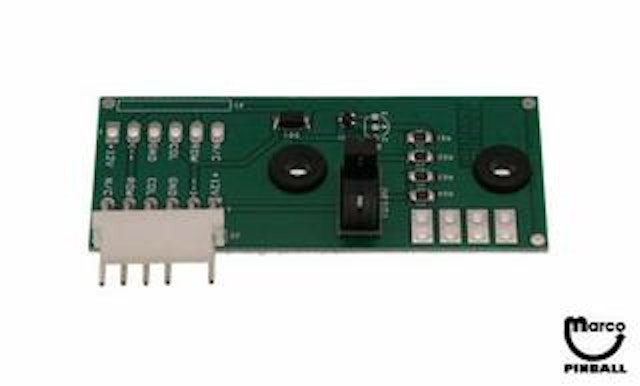

New design opto assembly for single drop target assembly C-11212-2
Flat washer 0.265 inch x 0.500 inch x 0.032 inch
E-clip or e-ring commonly used on many 3/16" mechanism shafts
Washer .250 x .500 x .015 inch
