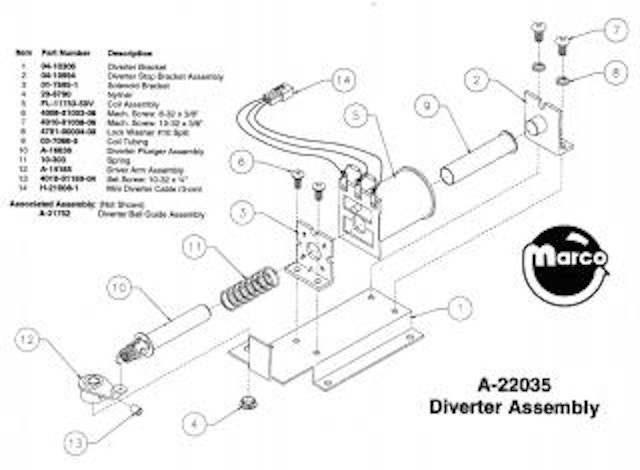

CIRQUS VOLTAIRE Bally pinball machine diverter assembly.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
CIRQUS VOLTAIRE Bally pinball machine diverter assembly kit.
Ships un-assembled.
Reference:
A-22035 diverter assembly01-7695-1 (1) bracket-solenoid03-7066-5 (1) tubing-coil04-10306 (1) brkt-diverter04-10994 (1) brkt-diverter stop10-303 (1) spring-master20-8790 (1) nyliner bearing4008-01003-06 (2) ms 8-32x3/8 p-ph-s4010-01008-06 (2) ms 10-32X3/8 p-ph-n4010-01169-04 (1) ss 10-32X1/4 sh-cp-n4701-00004-00 (2) lw #10 split5791-09111-00 (1) 3p1396 03-09-20325820-09080-00 (3) terminal-pm1190 02-09-2101A-14185 (1) drive armA-16636 (1) diverter plungerFL-11753 (1) flipper coil-yellow
Select manufacturer to view game compatibility
Standard snap-in Nyliner® bearing bushing with 1/4 inch Inner Diameter
Machine screw 8-32 x 3/8 inch phillips pan head.
Machine Screw 10-32 x 3/8 inch p-ph nylock.
#10 steel split lock washer. Zinc plated.
11mm x 66.2mm plunger used on divertor mechanisms.
Spring - extension diverter plunger
E-clip or e-ring commonly used on many mechanisms. 7/16 in. measured at the o...
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Bracket - diverter
Spring - compression master
3 terminal, dual winding flipper coill is used on the following machines:...
1/8" diameter x 7/16" length slotted spring roll pin. Reference:...
Williams coil bracket used on most late model Williams and Bally/Williams.
Special coil stop with long core for Bally CIRQUS VOLTAIRE pinball machine...
Black finish 10-32 x 1/4 inch set screw with locking compund patch. 3/32 inch drive.
Drive arm assembly used in solid state Williams/Bally games.
