3-Bank drop target assembly. Includes: 3-bank bracket and stud assembly
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

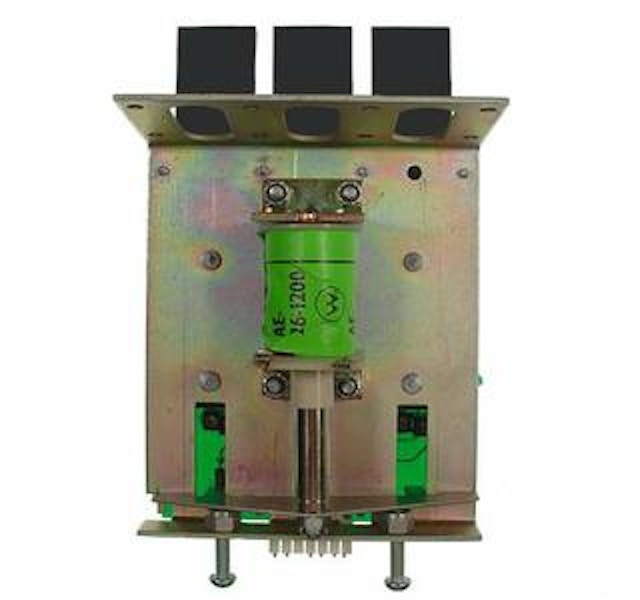

Williams 3-bank drop target assembly.
Reference:
A-16032-2
A-17045 triple bank bracket and stud assembly
A-11397 stop bracket assembly
01-8413-1 coil mounting bracket
A-13609 opto board
AE-26-1200 with sleeve 03-7066-4 and plunger 01-3972-1 01-11769 reset plate
5768-12630-03 circuit board
01-11769 (1) plate 3 bank reset
01-8413-1 (1) brackte coil mounting
02-3972-1 (1) plunger
03-7066-4 (1) tubing-coil
03-8334-3 (1) target stop 3.937
03-8749 (3) target-plain-black
04-10516-3 (1) bracket-3 bank drop target
10-364 (3) spring-retractor
10-392 (3) spring-extension
20-8712-18 (3) e ring 3/16 shaft
20-8712-25 (6) e ring 1/4 shaft
23-6622 (1) tape-double sided
23-6626 (3) grommet
4004-01005-04 (4) ms 4-40X1/4 p-ph
4010-01025-14 (2) ms 10-32X7/8 p-rh
4408-01119-00 (4) nut 8-32 esn
4410-01132-00 (1) nut 10-32 esn
4700-00016-00 (2) fw .187X.437X.053
4700-00072-00 (9) fw .265X.500X.032
5791-12570-00 (1) 1545-Z 03-09-2022
5820-09080-00 (2) terminal-pm1190 02-09-2101
A-11397 (1) drop target stop bracket

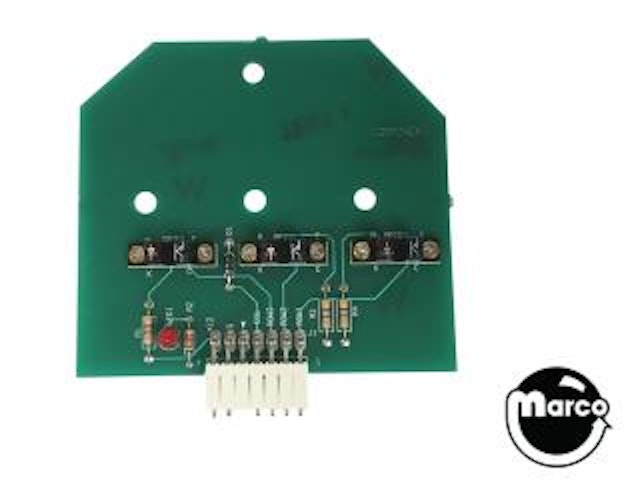

A-13609 (1) 3 bank drop target pcb
AE-26-1200 (1) coil
H-19523 (1) 2 pin cable-solenoid
HW-30018-2 (3) wire 18awg red
HW-30018-7 (3) wire 18awg violet
Select manufacturer to view game compatibility
Drop target assembly Williams 3 bank
Williams / Bally black plastic drop target with 3/8" wide wedge shaped top...
New design circuit board for 3 bank Williams drop target assemblies

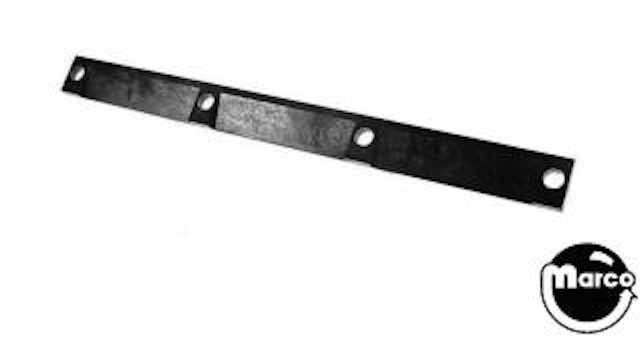

Drop target rest ledge 3.937 inch 3 bank
Drop target reset plate Williams triple
Bracket-assy 3 bank drop target
INDIANA JONES (Williams) 3-bank target assembly with coil and drop targets...
