Drop target assembly Williams 3 bank
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Williams 3 bank-drop target assembly
Reference:
A-16032-1 triple bank drop target assembly01-11769 (1) plate 3 bank reset01-8413-1 (1) bracket coil mtg02-3972-1 (1) plunger03-7066-4 (1) tubing-coil03-8334-3 (1) target stop 3.93703-8749 (3) target-plain-black04-10516-3 (1) bracket 3 bank drop target10-364 (3) spring-retractor10-392 (3) spring-extension20-8712-18 (3) e ring 3/16 shaft20-8712-25 (6) e ring 1/4 shaft23-6622 (1) tape-double sided23-6626 (3) grommet4004-01005-04 (4) ms 4-40 x 1/4 p-ph4010-01025-14 (2) ms 10-32 x 7/8 p-rh4408-01119-00 (4) nut 8-32 esn4410-01132-00 (1) nut 10-32 esn4700-00016-00 (2) fw .187 x .437 x .0534700-00072-00 (9) fw .265 x .500 x .0325791-12570-00 (1) 1545-Z 03-09-20225820-09080-00 (2) terminal-pm1190 02-09-2101A-11397 (1) drop target stop bktA-13609 (1) 3 bank drop target pcb assyAE-26-1200 (1) coilH-19523 (1) 2 pin cable-solenoidHW-30018-2 (3) wire 18awg redHW-30018-7 (3) wire 18awg violet
Select manufacturer to view game compatibility

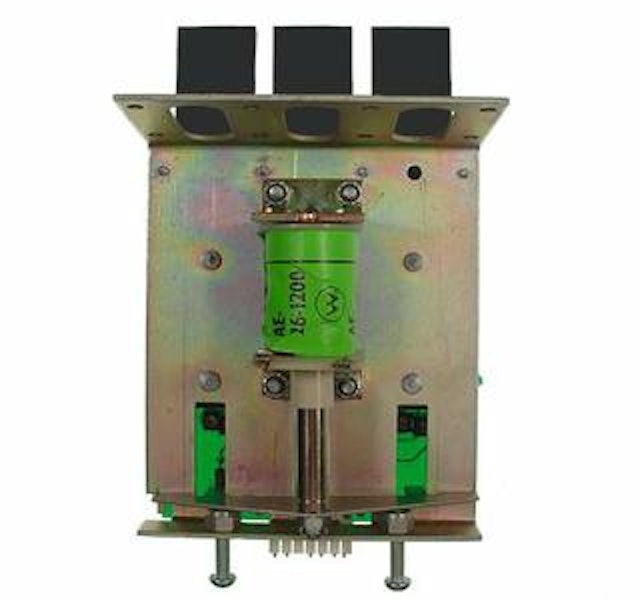

3-Bank drop target assembly. Includes: 3-bank bracket and stud assembly
Machine Screw 10-32 x 7/8 inch p-ph-s

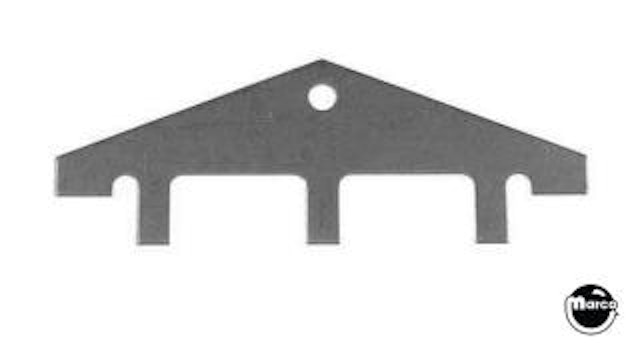

Drop target reset plate Williams triple
2-1/2" plunger overall length with a 10-32 thread stud. Interchang...
Rubber grommet - 3/8 inch OD

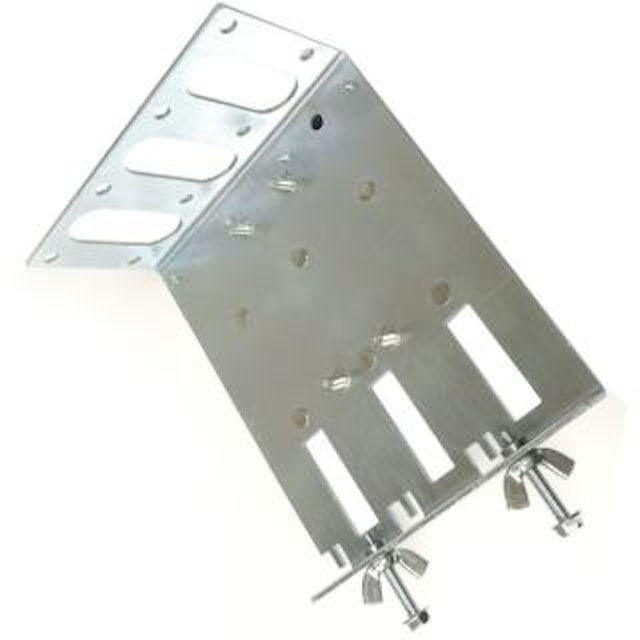

Bracket-assy 3 bank drop target
