Flipper rebuild kit Data East solid state
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Data East pinball machines solid state flipper rebuild kit.
These flipper kits are used in all Data East Solid State flipper games with TY-FFASI controller boards starting with 1988 TIME MACHINE and ending with 1990 PHANTOM OF THE OPERA. These flipper assemblies do not have end-of-stroke (EOS) switches.
Metal replacement parts in the kit are zinc plated to conform with RoHS (Reduction of Hazardous Substances) legislation. Your original metal components may have a brass colored anodized finish that contains lead.

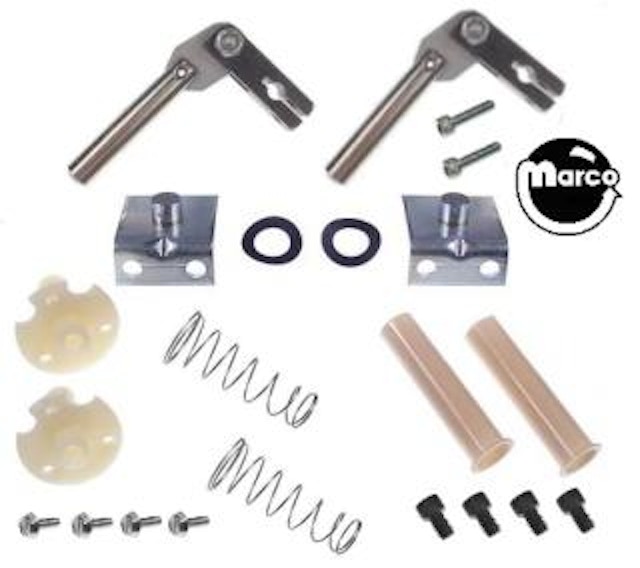

Kit includes:
plunger link assemblies
springs
spring washers
nylon sleeves
nylon bushings
coil stops
Reference:
Data East / Stern 500-6306-20
500-6306-20 left & right sides
500-6306-00 right side
500-6306-10 left side
