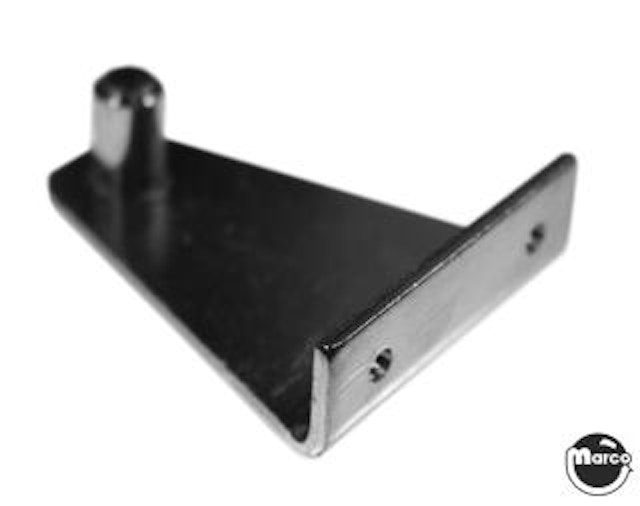

Bracket - playfield pivot Stern
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Pivot bracket for playfield to cabinet support assembly in Data East / Sega / late Stern pinball machines. Mounts to underside of playfield.
Length of bracket is 2 inch from base to center of stud.
Rests on playfield support slide 535-6862-05 which is fastened to the cabinet.
Reference:
500-5329-00500-5329-01500-5329-02500-5329-03 - 2 inch length to stud centerCapcom
Select manufacturer to view game compatibility
Playfield service support slide bracket for late model Stern pinball machines.
Service support bracket Stern SAM kit

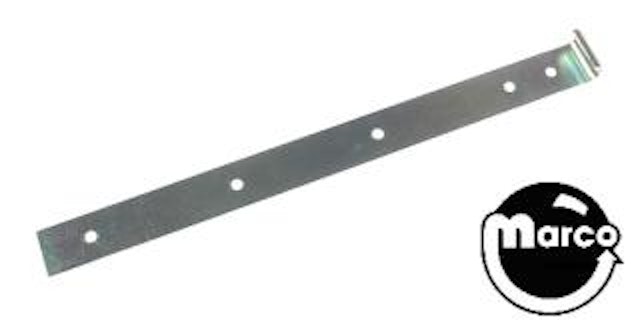

Edge slide bracket used on Stern pinball machines
