Service support bracket Stern SAM kit

Playfield service support slide U bracket upgrade kit for late model Stern SAM System pinball machines.

Upgrade kit replaces dual threaded rod supports on many late model Stern PRO edition pinball machines.

Large U shaped brackets allow playfield to rest in the extended service position and avoid damage to underside circuitry and mechanisms. Also eases access when sliding playfield in and out of the cabinet.

Beginning with IRON MAN PRO and partial production of previous game BIG BUCK HUNTER PRO, Stern PRO model pinball machines replaced playfield support slide brackets with 2 threaded rod playfield service supports. Subsequent productions of BATMAN THE DARK KNIGHT, Stern SPIDERMAN, and SIMPSONS PINBALL PARTY are also originally equipped with threaded rod supports.

Kit comes complete with:
(2) playfield support slide U brackets (535-6862-05).
(4) #10 x 1/2 inch mounting screws
(2) #8-32 t-nuts

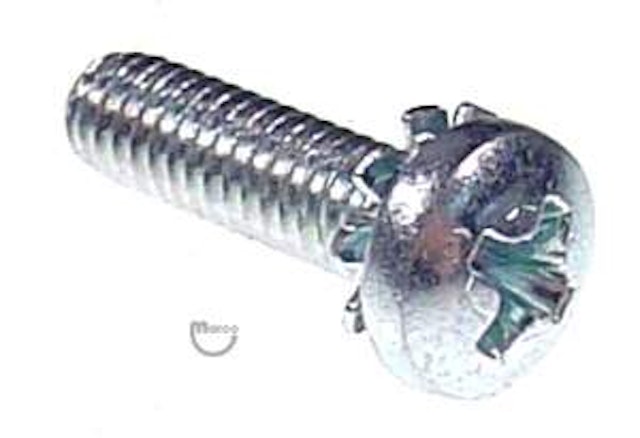

(2) #8-32 x 5/8 inch mounting bolts

Tools required for installation:
Drill with 13/64" bit
Hammer
Phillips screwdriver
Slotted screwdriver
1/4 inch nutdriver

Reference:

replaces 535-6862-02535-6862-05511-7621-00
