Machine Screw 8-32 x 3/16 inch long phillips pan head sems with external tooth
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

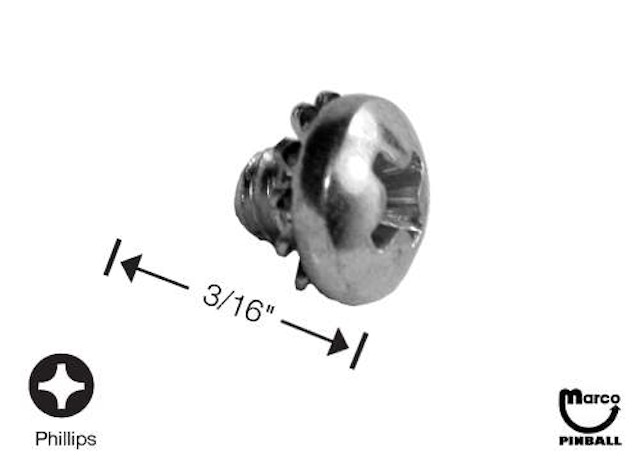

8-32 x 3/16" phillips pan head sems machine screw with external tooth lockwasher.
Reference:
4008-01003-03
Fastener part numbering system explained:
The last 2 digits (XX) of the 4 digit fastener part number prefix (40XX-12345-12) indicates the standard stud size of the bolt or screw. For example, part No.4006-01030-12 indicates a No.6 stud diameter (.138") fastener.
The middle 5 digits describe the fastener head style or other features.
The 2 digit part number suffix for bolts and screws (-12, -04, -16, etc) indicates the number of 1/16" length increments of the fastener. For example, part No.4004-01003-04 indicates a screw that is 4/16" long or 1/4" long.
Basic diameters and threads of Standard
The diameters of machine screws are indicated with the number of threads per inch. Here is a list of common sizes in inches:
2-56: 0.0860" or 43/500" diameter; 56 threads per inch
4-40: 0.1120" or 14/125" diameter; 40 threads per inch
5-40: 0.1250" or 1/8" diameter; 40 threads per inch
6-32: 0.1380" or 69/500" diameter; 32 threads per inch
8-32: 0.1640" or 41/250" diameter; 32 threads per inch
10-32: 0.1900" or 19/100" diameter; 32 threads per inch
10-24: 0.1900" or 19/100" diameter; 24 threads per inch
12-24: 0.2160" or 27/125" diameter; 24 threads per inch
Select manufacturer to view game compatibility
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Machine screw 8-32 x 3/8 inch phillips pan head.
Phillips tip screwdriver with 3 inch long shaft.
Machine Screw 8-32 x 7/16" p-ph-sems

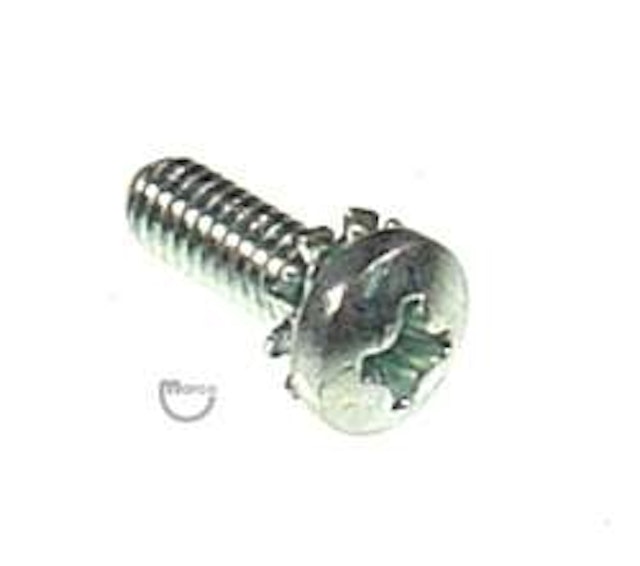

Machine Screw 8-32 x 1/2" long phillips pan head sems with external tooth...

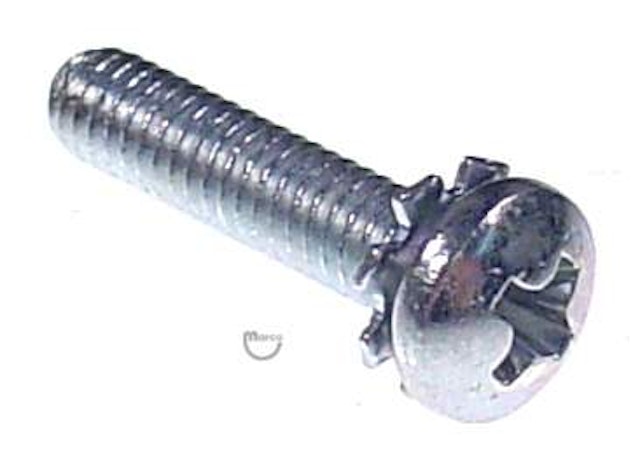

Machine Screw 8-32 x 3/4" long pan head phillips with external tooth lockw...

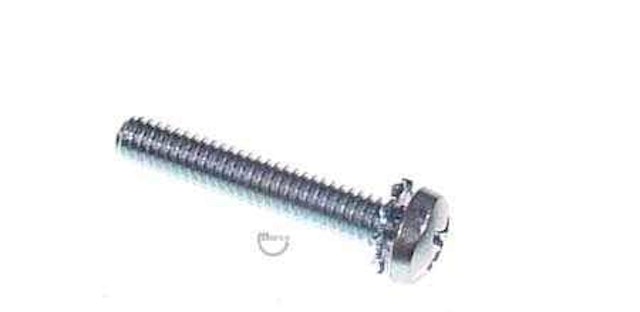

Machine Screw 8-32 x 1" long pan head phillips with external tooth lockwas...
