21 piece electronic components rebuild kit for the High Voltage section.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

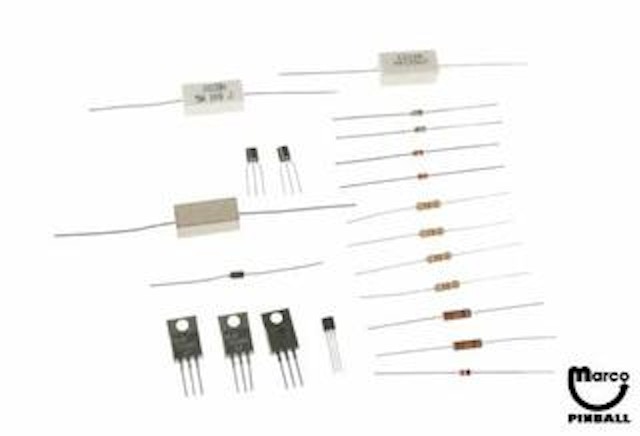

24 piece electronic components rebuild kit for the High Voltage section of Williams A-14039 WPC system dot matrix controller boards.
This critical update kit is designed to prevent burnt circuit board damage from original components. Take a moment to inspect the rear side of the A-14039 controller board and you will see a blackened area under the high voltage circuit area.
Installation requires circuit board soldering skills and about 20 minutes.
NOTE:In some game manuals, D4 and D5 are correctly listed as 1N4758A, but incorrectly reference these diodes at 62V. The WPC Schematic manuals correctly lists these diodes as 1N4758A - 56V.
Kit includes:
1N4759A zener diode (1 piece) D31N4758A zener diode (2 pieces) D4, D51N4742A zener diode (2 pieces) D8,D61N4004 diode (1 piece) D72N5551 (MPSD02) transistor (2 pieces) Q2,Q102N5401 (MPSD52) transistor (2 pieces) Q4,Q5MJE15030 transistor (2 pieces) Q3,Q7MJE15031 transistor (1 pieces) Q6120 ohm 1/2 watt resistor (2 pieces) R4,R547K ohm 1/2 watt resistor (4 pieces) R3,R6,R12,R1356 ohm 1/4 watt resistor (1 piece) R74.7K ohm 5 watt resistor (1 piece) R81.8 Kohm 5 watt resistor (1 piece) R9120 ohm 5 watt resistor (1 piece) R11.001 mfd 50 volt disc capacitor (1 piece) C11
Reference:
A-14039 Dot Matrix controller board5075-12826-00 zener diode 62v 1 watt5070-09054-00 diode 1N40045075-12824-00 zener diode 12v 1 watt5075-12823-00 zener diode 56v 1 watt5164-12154-00 transistor MJE150305164-12155-00 transistor MJE150315194-09055-00 transistor MPSD525164-09056-00 transistor MSPD025043-09845-00 capacitor .001mfd 50v5010-10171-00 resistor 56 ohm 1/4 watt
Select manufacturer to view game compatibility
Zener diode 56 volt 1 amp Reference: 5075-12823-00
Diode - Zener 12v 1 watt
Diode - 400 volts 1 amp XO-254
NPN complementary silicon plastic power transistor in a TO-220AB case. XO-1143
Transistor PWR PNP 8A 150V TO220AB case Reference: Williams 5194-1...
Transistor - PNP pre driver used on many pinball machine circuit boards.
Resistor - 120 ohms 1/2 watt 5010-12841-00
Resistor - 4.7K ohm 5 watt. Reference: R5W4.7K
Resistor - 1800 ohms 5 watt 5012-12830-00
Resistor 5 watt 120 ohms with axial leads.
Transistor NPN 160V 0.6A 3-Pin TO-92 XO-313
Resistor - 47,000 ohm 1/2 watt

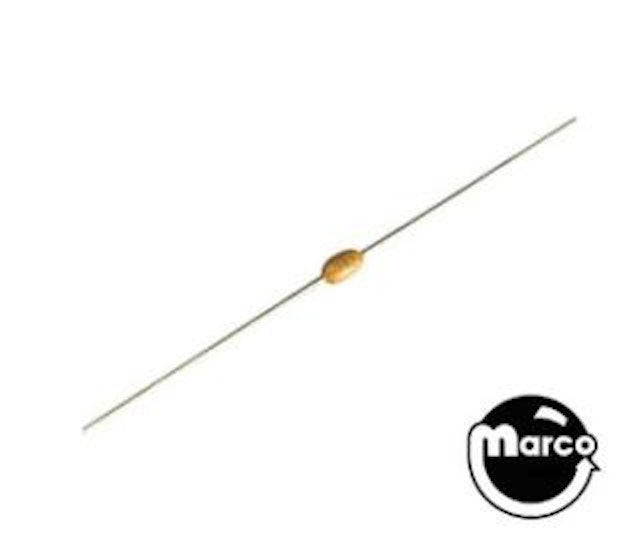

Capacitor 1000 pF 50 axial
Resistor - 56 ohms 1/4 watt
Zener diode 62 volt 1 watt Reference: 5075-12826-00
