Power Supply board United/Williams/Data East D-8345
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
New, Pin Tek drop in replacement for Data East, Williams pinball machines and United shuffle alleys using the Williams System 3 - 11A power supply board part D-8345 or D-7999.
Replaces original part number D-7999-XXX. (where XXX is the game model number)
For Data East dot matrix display games, use 520-5047-00 under related items below.
Features:
Plug and Play replacement
Thicker board for more stability to help reduce stress cracks
Power resistor upgraded to flame-proof Metal Oxide for safety
High Efficiency 5V Switch Mode power supply regulator
Obsolete components replaced with current high reliability production parts
Reference:
D-7999-GP
D-7999
1D-2001-134 pcb
Williams D-8345
Data East 520-5000-00
Select manufacturer to view game compatibility
Power Supply board United/Williams System 3-6
Power supply board Data East games 520-5047-02

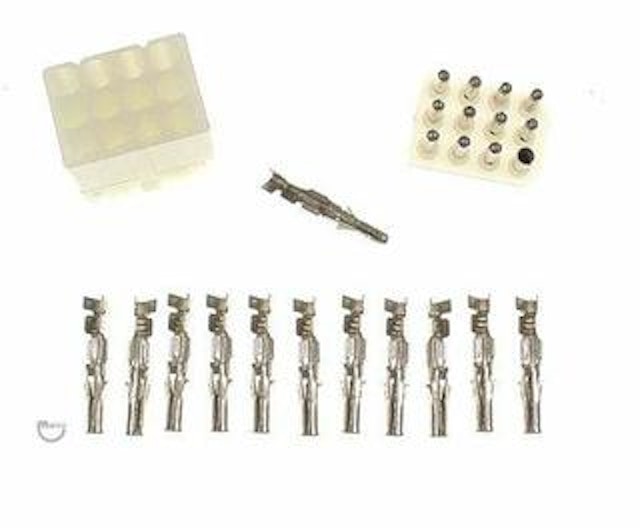

14 piece power supply connector rebuild kit fpr Data East / Williams boards

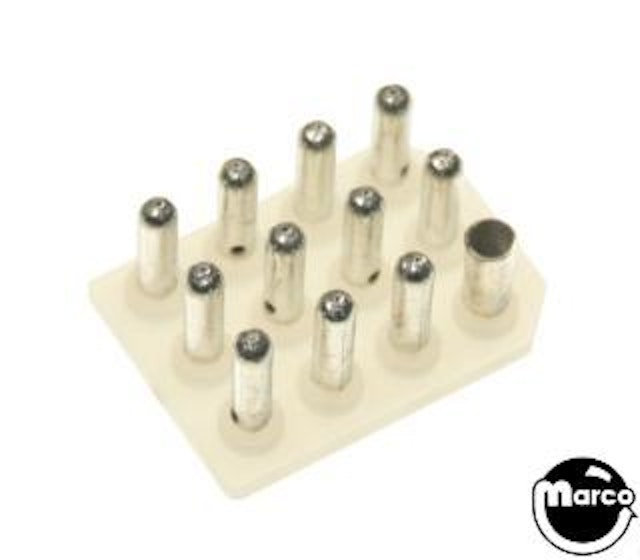

Connector pcb .093 inch 12 position wafer

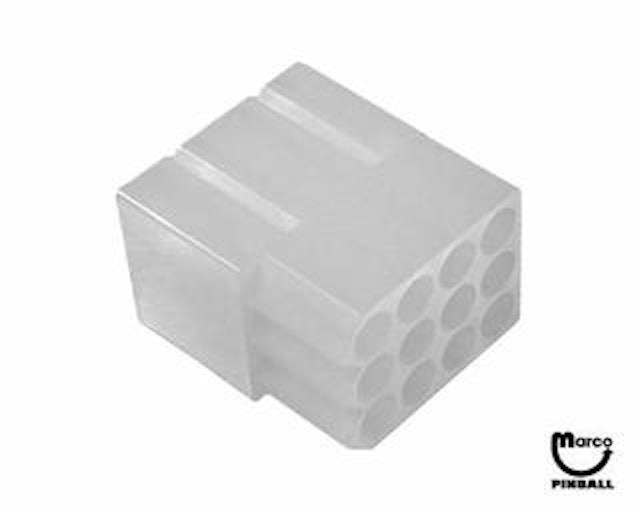

12 position receptacle with no ears uses 0.093 inch crimp terminals.
