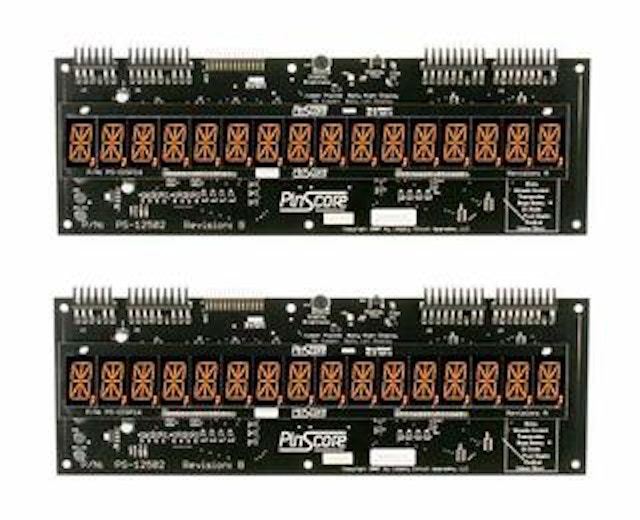

PS-12502-P Rev C display system for Williams system 11B and 11C
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
NEW! PINSCORE Display Systems!
Brilliant design makes brilliant displays.
New PINSCORE LED displays for pinball machines are the best performing, most feature-packed and economical replacement systems for obsolete glass plasma digital displays.
This PINSCORE System model PS-12502-P will work in all of the following Bally / Williams pinball machines:
BUGS BUNNY
DR DUDE (Most models, not for WPC89 system games)
ELVIRA & THE PARTY MONSTERS
GAME SHOW
MOUSIN' AROUND
POOL SHARKS
TRANSPORTER
Features:
20 minute plug & play installation
Adjustable brightness
Diagnostic pushbutton
Low power consumption - uses only 5V and needs no high voltage
Beautiful black matte finish segments and boards
Foam light shields prevent glare from surrounding general illumination
Crisp alpha-numeric digits illuminate in original font & color
2 year warranty
Built in USA
RoHS compliant
This system contains:
(2) PS-12502 PINSCORE Master Driver Board
(2) PS-DIS16 PINSCORE 16 digit LED Display Board
(2) PS-LS-16 Foam light shield for 16 digit Display Board
(12) PS-BHDL801 stand-offs
Reference:
Williams D-12502 Master Display/Driver board - right side
Williams D-12706 Master Display/Driver board - left side
Williams 5768-12378-00 printed circuit board - right side
Williams 16-8850-251 assembly right
Williams 5768-12408-00 printed circuit board - Left
UDN7180A
Williams System 11B and 11C
INSTALLATION INSTRUCTIONS:
INSTALLATION TIME: About 15 minutes
TOOLS REQUIRED: 1/4” Nutdriver
Unplug the AC power from your pinball machine. Remove game backglass. Unscrew and remove all original glass displays, master driver board and all inter-board connecting cables.
Mount all new boards in their respective locations. You may slide the LED display boards horizontally to adjust their positions for alignment with your backglass windows. If not already mounted, place the foam light shields on their respective LED display boards.
Connect the cables. Observe correct polarity on all ribbon cables - the red striped wires on all ribbon cables go to PIN #1 (also labeled RED) on all boards.
Be sure the small jumper block is is installed on the 2 pin connector near the board center labeled RIGHT . This indicates the side of the game on which the board is mounted.
Double-check all connections, plug in the machine, and turn the game on. The LED’s will light up. Pressing the DIAGNOSTIC. pushbutton on the Master Driver board will illuminate all segments of all displays. This indicates that all boards and cables in the PINSCORE System are operating correctly. Use the thumbwheel BRIGHTNESS control on the Master Driver & Display board to set your preferred illumination level.
