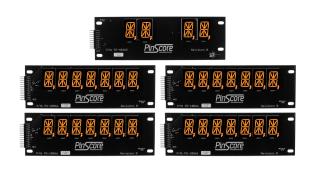

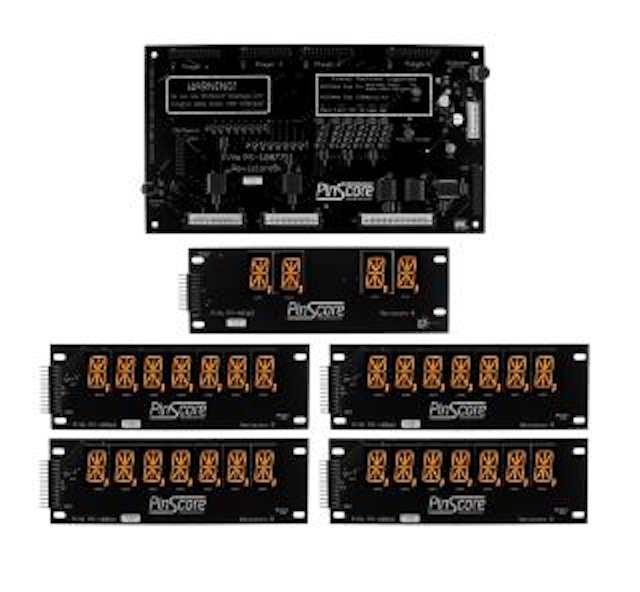

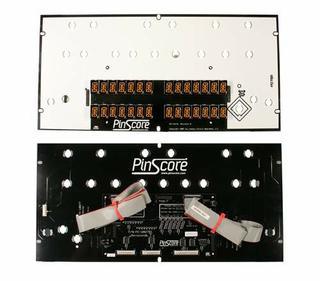

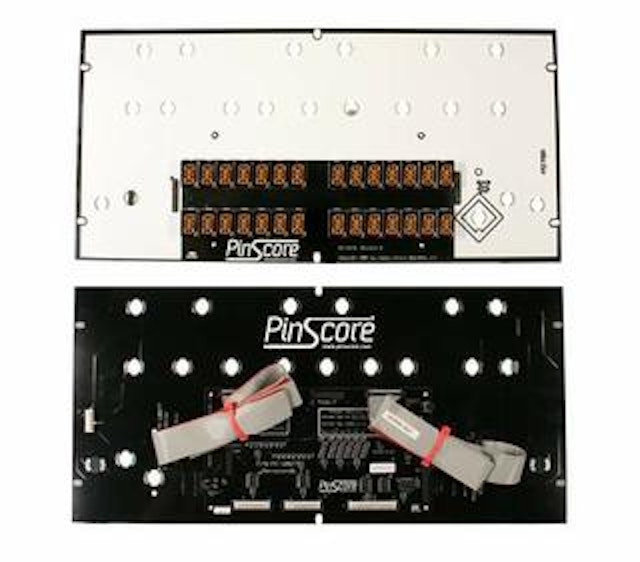

PINSCORE Display System Williams 11

Beautiful black matte finish

Foam light shields prevent general illumination leakage glare

Crisp alpha & numeric digits illuminate in original font & color

2 year warranty

Assembled in USA

RoHS compliant

INSTALLATION:

CAUTION: This PS-10877-P Display System CANNOT be used with any original display or driver boards. Damage to both new and old boards will occur if the systems are mixed. Please remove all original boards and install only these new boards.

Unplug the AC power from your pinball machine. Remove game backglass. Unscrew and remove all original glass displays, master driver board and all inter-board connecting cables.

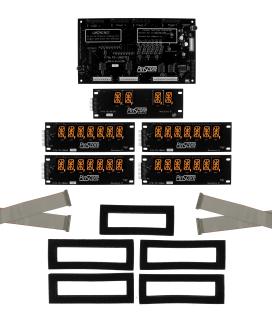

Mount all new boards in their respective locations and only hand tighten the mounting screws. You may slide the LED display boards horizontally to adjust their positions for alignment with your backglass windows. If not already in place, place the foam light shields on their respective LED display boards.

Connect the cables. You may re-use the existing cables for the 2 top displays. The lower displays require the 2 new 26 pin ribbon cables included in this kit. Observe correct polarity on all ribbon cables - the red striped wires on all ribbon cables go to PIN #1 (also labeled as RED) on all boards.

Double-check all connections, plug in the machine, and turn the game on. The LED’s will light up. Pressing the DIAGNOSTIC pushbutton on the Master Driver board will illuminate all segments of all displays. This indicates that all boards and cables in the PINSCORE System are operating correctly. Use the thumbwheel BRIGHTNESS control on the Master Driver board to set your preferred illumination level.

PLAY PINBALL! You’ll enjoy your PINSCORE Displays for years to come!

Reference:

PS-10877-P
