TWILIGHT ZONE (Bally) Clock LED boards A-16219 / A-16220
TWILIGHT ZONE (Bally) Clock LED board set A-16219 min A-16220 hr
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Product Details
New, improved LED combo Clock board set for Bally TWILIGHT ZONE that replaces both original A-16220 (minutes) and A-16219 (hours) clock boards. It eliminates original design overheating and vibration problems.
New rugged clock board design features unique 12 high output LED "carpet lighting" placement to evenly illuminate clock face. No hot spots or light glare outside of the clock face. The clock will visually 'pop' and match the backbox translite (and TV series) clock artwork.
Replaces the original heat damage prone, four-lamp incandescent system. Incorporates eight optical clock hand control switches that run cooler and more efficiently than the original part.
Plug-and-play design installs easily in about 20 minutes using basic hand tools. Includes instructions and a spare "E" ring. Installs inside the clock assembly, nested between the clock housings. Dual PC board construction duplicates the original mechanical mounting.
Reference:
5768-13426-01 pcb
5768-13425-02 pcb

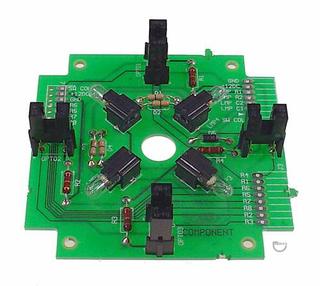

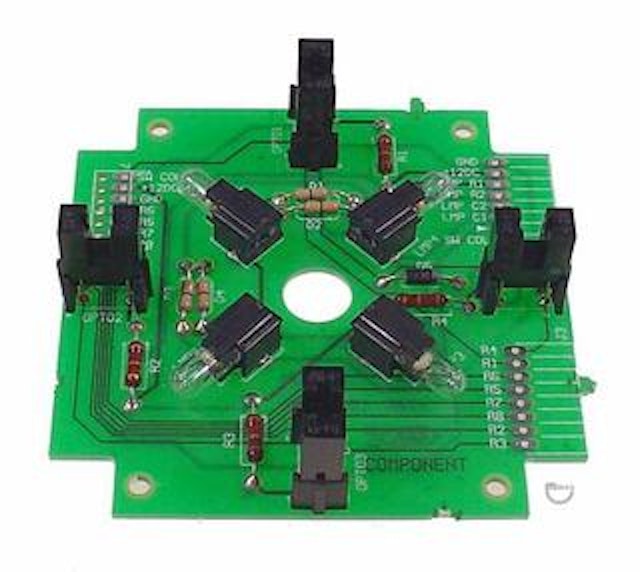

A-16220 Controls the MINUTES clock functions
A-16219 Controls the HOURS clock functions
