46 piece kit will completely overhaul the troublesome J1, J2, and J3 connectors on TA-100 and AS-2518-18
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

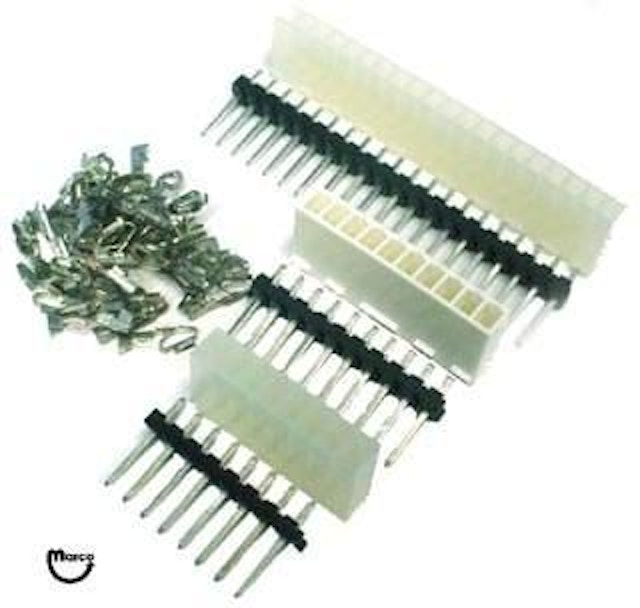

49 piece connector kit completely overhauls the troublesome J1, J2, and J3 connectors on early solid state (1977-1984) Bally and Stern pinball machine power/rectifier boards.
Includes 40 pieces of the high current capacity Trifurcon crimp terminals, 8, 10, and 20 circuit housings and male terminals.
Reference:
CKBLY
AS-2877-1 Power transformer module
AS-2518-18 rectifier board assembly
TA-100 rectifier board assembly
E-00715-0032 8 pin wafer connector
E-00715-0034 10 pin wafer connector
Suggested tool:
Select manufacturer to view game compatibility
.156 inch 8 Position female molex housing.
.156 inch 10 Position female molex housing.
.156 inch 20 Position female molex housing.
.156 inch 10 position male header

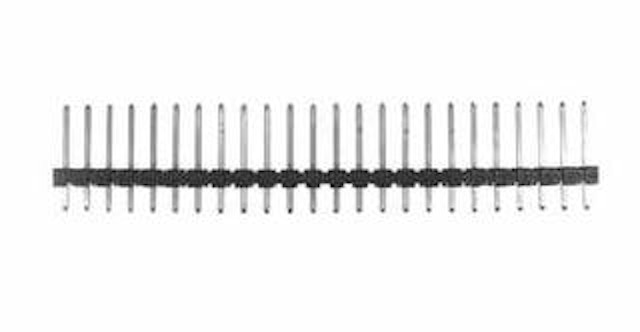

24 position break-away male header connector with .156 inch spacing between square, tin plated pins.
0.156 inch on center spacing Trifurcon crimp terminals for 18-20 AWG wire.
Plastic plug for keying .156" center spacing Molex female housings.
.156 inch 8 Position male molex header. Williams# 5791-12273-0...
