Catapult assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

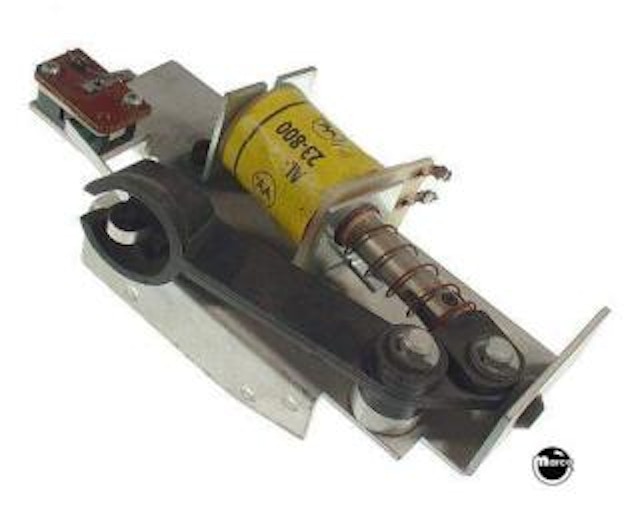

Williams catapult assembly includes switch, arm, linkage, and AL-23-800 coil.
Ships un-assembled
Reference:
C-11641-1 catapult assemblyAL-23-800 Coil - solenoid03-8089 Cannon / catapult armB-11640 Catapult and cannon bracket02-4301 Stud - catapult arm pin01-8413 Bracket coil 01-8413-1 (typo 01-8143 on diagram)4010-01066-06 Cap screw 10-32 x 3/8 inch sh flip bracket03-7066 Coil sleeve - 1-3/4 x 1/2 inch38-6577 Rubber bumper plug black 23-657710-395 Spring - compressionA-10821 Coil stop - flipper Williams4004-01003-10 Machine screw 4-40 x 5/8 inch p-ph-s4008-01003-04 Machine screw 8-32 x 1/4 inch p-ph-sems 4008-01017-04A-7438-1 Terminal strip Williams/Bally5647-12133-12 Switch miniature 1-3/4 inch lever w/ hook
