Williams BIG GUNS Cannon assembly includes switch, arm, linkage,
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

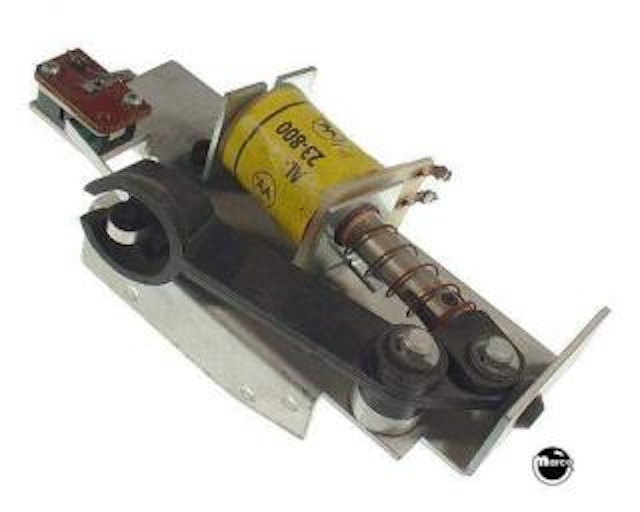

Williams BIG GUNS Cannon assembly includes switch, arm, linkage, and AL-23-800 coil.
Ships un-assembled
Reference:
C-11641 cannon assemblyAL-23-800 Coil - solenoid03-8089 Cannon / Catapult armB-11640 Catapult and cannon bracket02-4301 Stud - catapult arm pin01-8413 Bracket coil 01-8413-1 (typo 01-8143 on diagram)4010-01066-06 Cap screw 10-32 x 3/8 inch sh flip bracket03-7066 Coil sleeve - 1-3/4 x 1/2 inch38-6577 Rubber bumper plug black 23-657710-395 Spring - compressionA-10821 Coil stop - flipper Williams4004-01003-10 Machine Screw 4-40 x 5/8 inch p-ph-s4008-01003-04 Machine Screw 8-32 x 1/4 inch p-ph-sems 4008-01017-04A-7438-1 Terminal strip Williams/Bally5647-12133-12 Switch miniature 1-3/4 inch lever w/ hook
Select manufacturer to view game compatibility

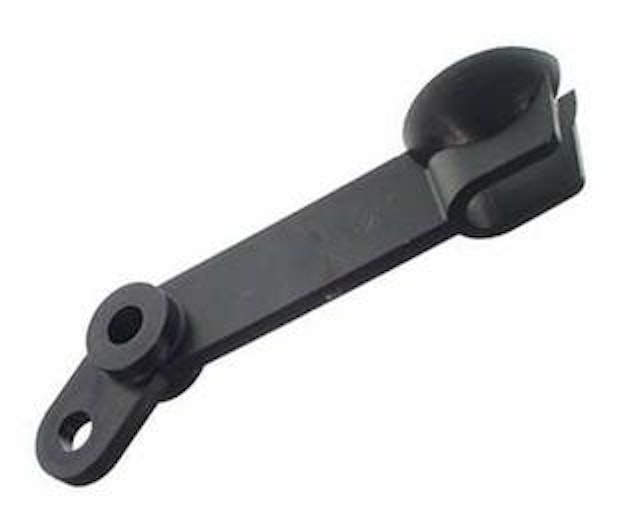

Black plastic Catapult Arm used on: BIG GUNS. BLACK ROSE. CHAMPION...
Catapult and cannon bracket

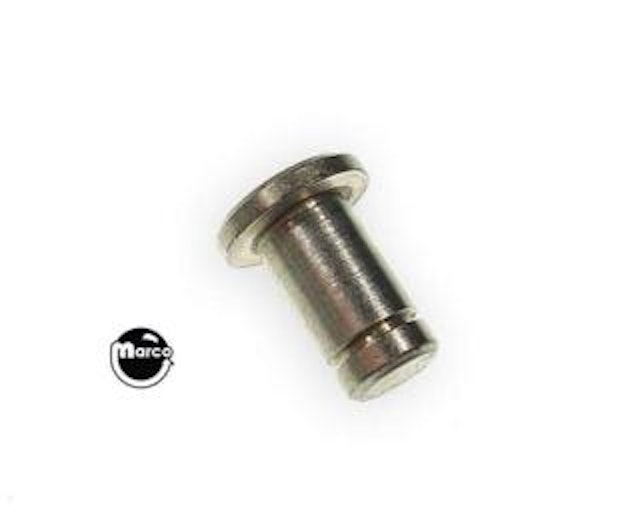

Williams Catapult arm pin. Reference: 02-4301
Coil sleeve (plastic tubing) is the most commonly used size on all machines.
Black rubber grommet, bumper plug. Reference Numbers: Williams #2...

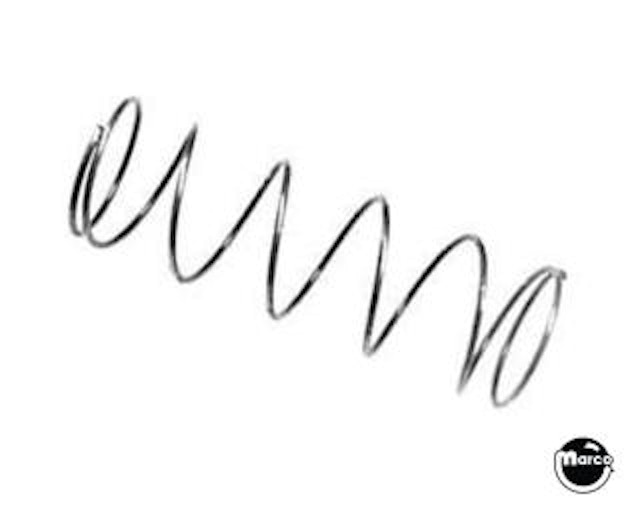

Spring - compression
Flipper coil stop for 1987 Williams F-14 TOMCAT, SPACE STATION, FIRE!, BIG...
Save 50% on 10 or more pieces. Black 10-32 X 3/8 hex socket head cap s...
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Steel plunger and gray link used in catapult assembly in WPC system games...
Machine screw with 4-40 thread and 5/8" long with phillips pan head

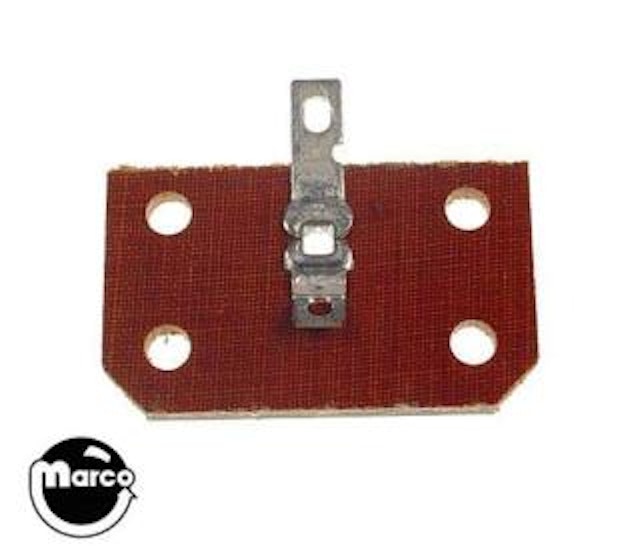

Terminal strip assembly used in WPC Williams/Bally series games Referen...

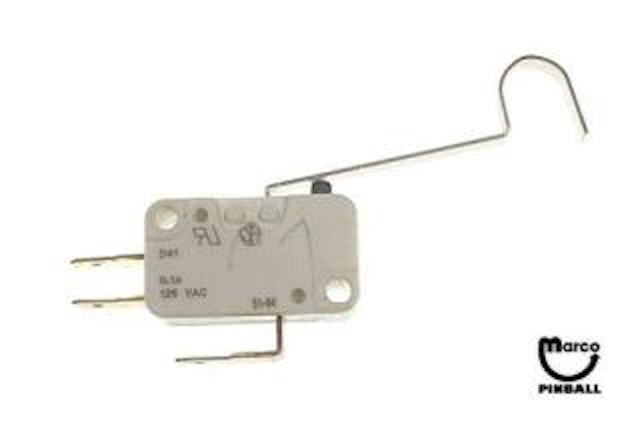

Miniature microswitch switch with 1-3/4" flat actuator.
Bracket - coil mounting

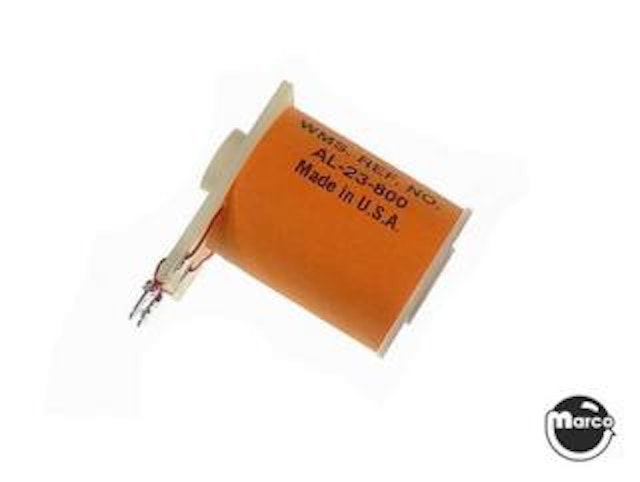

Two terminal coil with no diode
Diode - 1.1 volt 1 amp DO-41
Flat washer .361" x .500" x .059" thick.
E-clip or e-ring commonly used on many mechanisms. 5/16" measured at the o...
