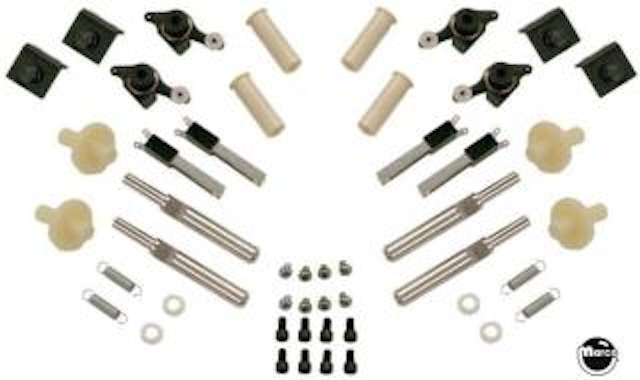

Flipper rebuild kit Bally 5/80-11/88 quad flipper
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Flipper Rebuild kit includes all mechanical components for Bally pinball machine left and right side linear style flipper assemblies on games with 4 flipper units manufactured from May 1980 ROLLING STONES through November 1988 TRUCK STOP (upper flippers).
These linear style flipper assemblies have no fiber links connecting the coil plunger to the crank as do conventional flipper mechanisms.
Rebuilds (2) Bally ASE-1587-111 (right side) and (2) ASE-1587-112 (left side) flipper assemblies.
Applies to the following Bally game titles:
--- Date --- Game ---
1980-05 ROLLING STONES1980-06 HOTDOGGIN'1980-06 MYSTIC1980-07 VIKING1980-09 SKATEBALL1980-11 FRONTIER1980-11 XENON1981-02 FLASH GORDON1981-06 EMBRYON1981-06 FIREBALL II1981-08 FATHOM1981-09 MEDUSA1981-12 ELEKTRA1982-02 VECTOR1982-05 MR. & MRS. PAC MAN1982-08 SPEAKEASY 2 and 4 Player1982-08 SPECTRUM1982-11 BMX1982-12 EIGHT BALL DELUXELimited Edition1984-01 GRANNY and the GATORS1984-02 X's & O's1984-03 KINGS of STEEL1984-10 SPY HUNTER1986-06 KARATE FIGHT1986-06 MOTORDOME1986-08 BLACK BELT1986-09 SPECIAL FORCE1986-11 STRANGE SCIENCE1987-04 HARDBODY1987-05 PARTY ANIMAL1987-08 HEAVY METAL MELTDOWN1987-10 DUNGEONS & DRAGONS1988-01 ESCAPE from the LOST WORLD1988-03 BLACKWATER 100
Select manufacturer to view game compatibility
This is the right side crank or pawl used in many mid 1980's Bally pinball...
This is the left crank or pawl or lever arm hub and cap assembly used in...
Plunger - linear flipper Bally/Midway #0360-00718-00XF plunger.
Flipper End Of Stroke (EOS) switch. Used in Bally/Midway linear flipper as...
Bally flipper coil stop for all Bally flipper assemblies (1968-1987) inclu...
Bally flipper bushing for machines made before 1985. 1.65 inch long
Nyliner nylon bearing 5/16 inch inner diameter.
Spring washer .50 x .875 inch
Set screw 1/4-28 x 1/4 inch sh-kn-cp M-1369
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Coil sleeve (plastic tubing) is the most commonly used size on all machines.
Normally Open (N.O.) secondary EOS (end-of-stroke) switch.
Spring - extension flipper return
Normally Open (N.O.) secondary EOS (end-of-stroke) switch.
