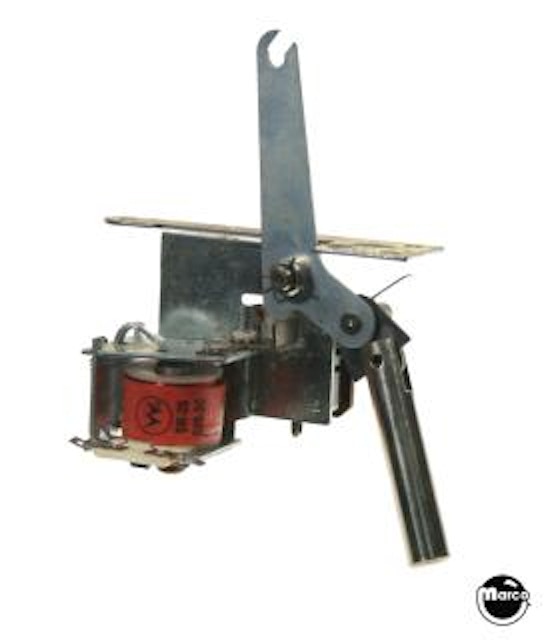

Ramp lifting mechanism assembly kit.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Ramp lifting mechanism assembly kit.Ships unassembled.Reference:
B-11304
B-11304-3
B-11304-4
Select manufacturer to view game compatibility
Hairpin retaining clip used to secure shafts and studs on many mechanical assemblies.
Washer .172 x .437 x .062 inch brass
Machine screw with 4-40 thread and 5/16" long with phillips pan head and i...
Miniature switch with flat lever actuator

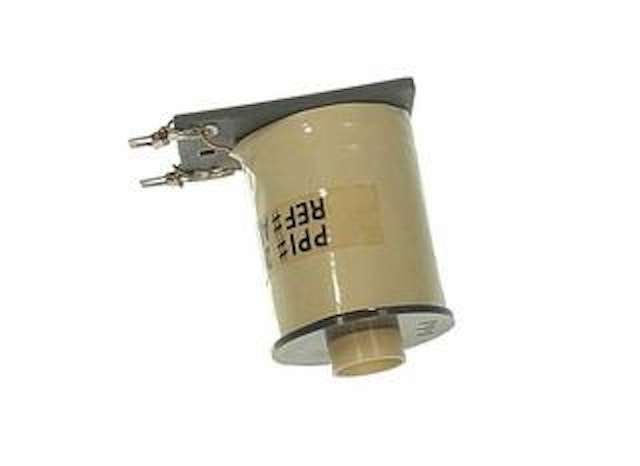

Common solenoid coil used on many manufacturers pinball machines...
Machine screw with 6-32 thread and 3/16" long with phillips pan head and attached lockwasher.

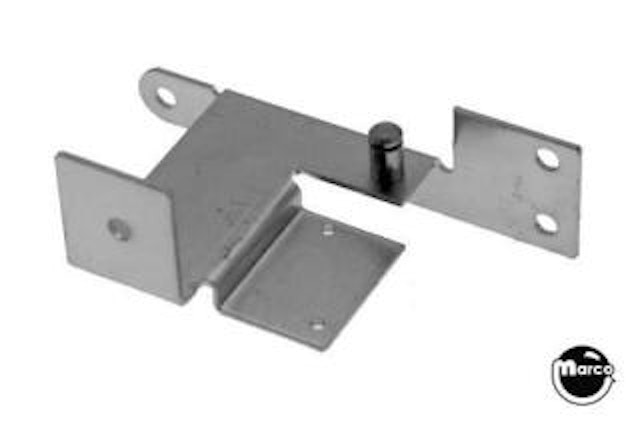

Lift mechanism bracket
Williams plunger and link assembly with 2-1/4 inch long plunger.
Washer .281 x .500 x .032 inches
Compression spring used in many different assemblies. Replaces 266-500...
Diode - 1.1 volt 1 amp DO-41
Machine Screw 8-32 x 7/16" p-rh-brass

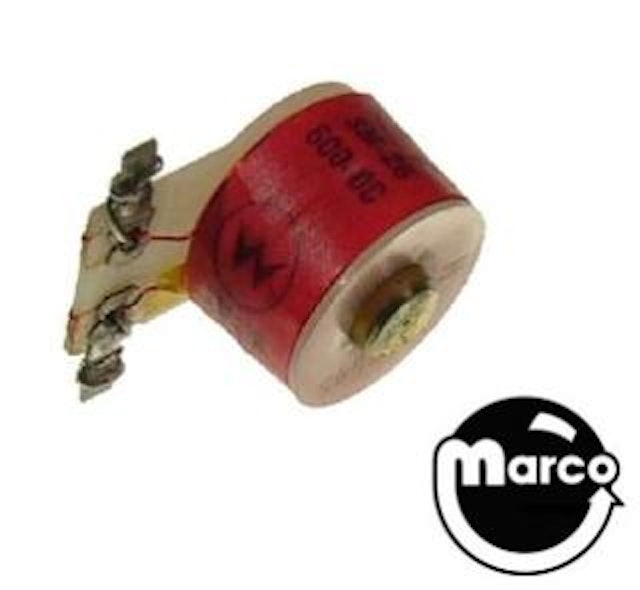

Williams coil - relay with diode
Elastic Stop Nut used on rod and ring (A-4754) assemblies.
Terminal strip assembly used in WPC Williams/Bally series games Referen...

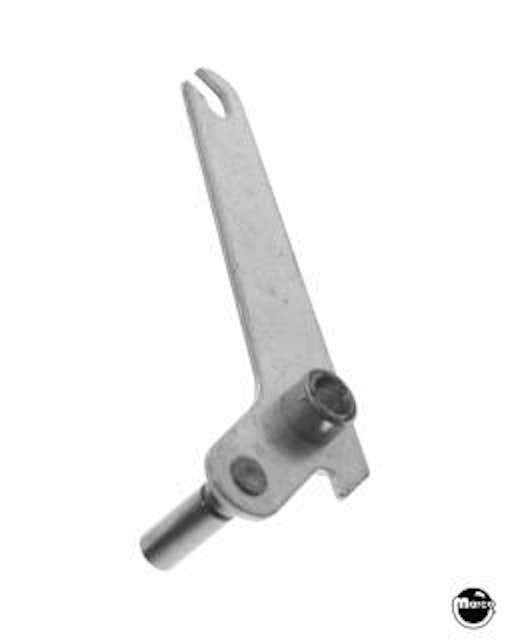

Lift crank assembly used in Bally/Williams ramp lifting mechanisms.
lock washer #8 split
Coil retainer bracket used on many Williams & Bally machines including:...

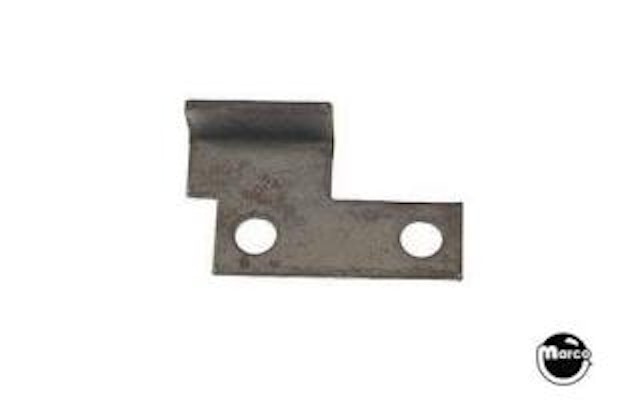

Lift crank lock plate. Reference: 01-8390
Spring - extension
Hairpin retaining clip used to secure shafts and studs on many mechanical assemblies.
Coil bracket for pinball machine kicker and slingshot assemblies
Machine screw with 4-40 thread and 5/8" long with phillips pan head
Frame & eyelet assembly. Reference: A-6892
Machine Screw 6-32 x 3/8" long phillips pan head with external tooth lockw...
