Outhole kicker / Ball release unit kit
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

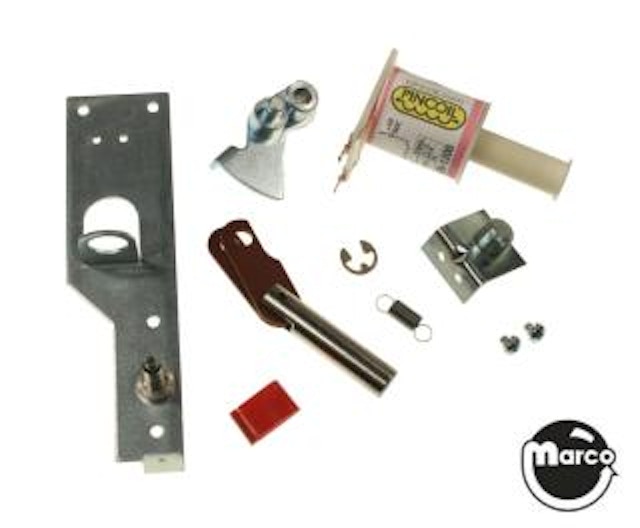

Outhole kicker / ball release unit kit.
Includes AE-26-1200 coil and all pieces pictured. Assembly required.

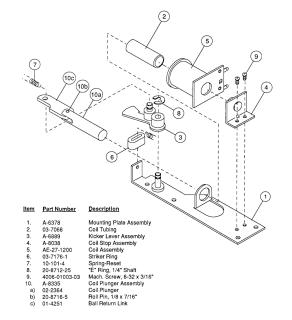

Reference:
A-8039-3 ball release assembly
A-6378 mounting plate
02-2364 plunger
20-8716-5 roll pin
01-4251 link
03-7066 coil tubing
A-6889 kicker lever
A-8038 coil stop
AE-26-1200 coil
03-7176-1 striker ring
10-101-4 spring
20-8712-25 e-ring
4006-01003-03 machine screw
