Eject Assembly for Williams MONSTER BASH
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

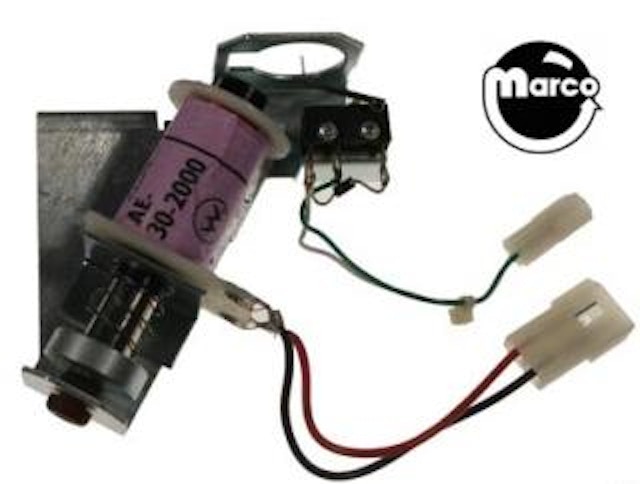

Eject assembly for Williams MONSTER BASH pinball machine.
Includes bracket, coil, plunger, switch. Wire harness not included.
Ships un-assembled.
Reference:
A-22449 eject assembly03-7067-5 (1) tubing-coil03-7520-2 (1) tie wrap-nylon 3 7/804-10322-2 (1) bracket-coil04-10702.2-1 (1) bracket-eject10-135 (1) spring-plunger23-6420 (1) grommet4002-01105-06 (2) ms 2-56x3/8 p-ph-s4408-01119-00 (2) nut 8-32 esn5070-09054-00 (1) diode-1N4004 1.0a5647-12693-66 (1) switch-sub mini micro5791-10772-00 (1) 2P11625 03-06-20235820-09078-00 (2) pm1560 02-06-2101A-15371 (1) plungerAE-30-2000 (1) coilCW-30022-5 (3) wire 22awg greenCW-30022-9 (3) wire 22awg whiteH-16437 (1) mini switch cable
Select manufacturer to view game compatibility
Cable tie 3-7/8 inch nylon - single

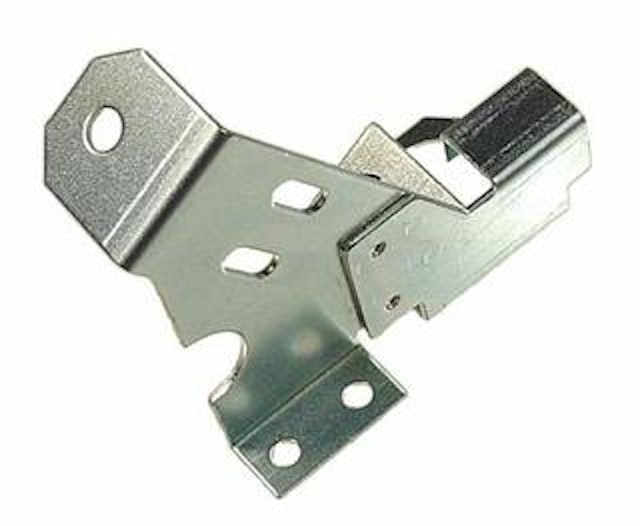

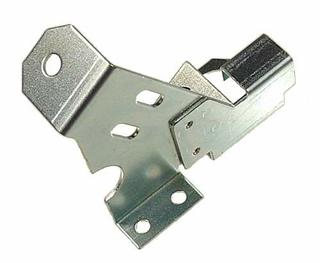

Eject bracket Williams / Bally
Machine screw with 2-56 thread and 3/8 inch long with phillips pan head.
Elastic stop nut used on the thumper bumper brackets and other mechanisms.
Diode - 400 volts 1 amp XO-254
2 position connector uses .062 inch crimp terminals.
Plunger assembly 3.0625 inches
Common solenoid coil used on many manufacturers pinballs
Coil sleeve - 2-1/16 inch with 3/16 inch flange

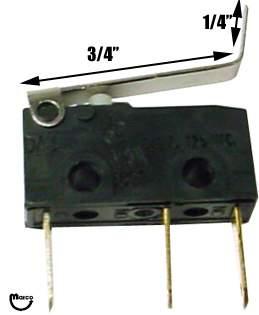

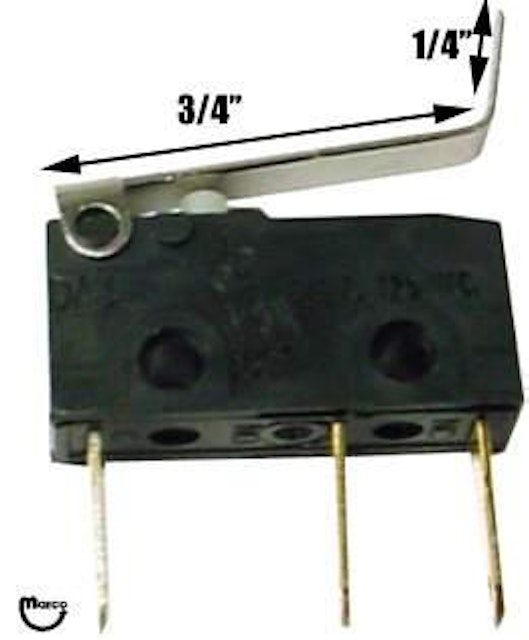

Sub miniature snap action switch with 3 terminals and custom wireform actu...
Terminal pm1560

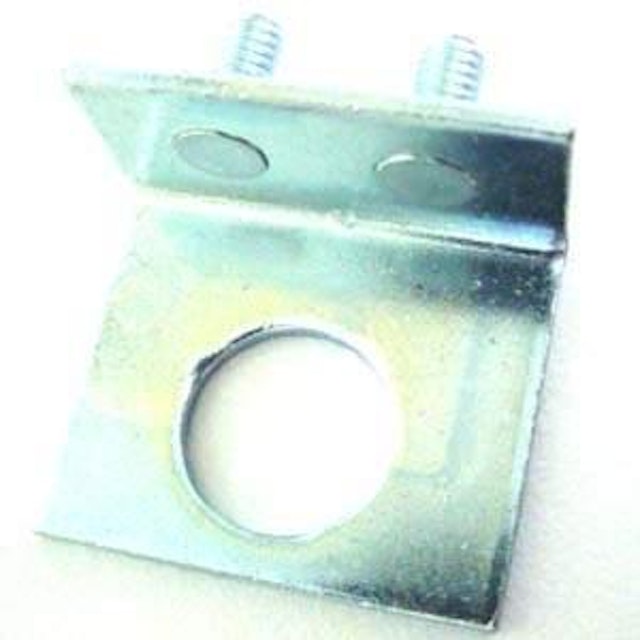

Coil bracket for late model Bally / Williams games
Common compression spring used on flippers, pop bumper, ball kickers, ball poppers.
