TALES OF THE ARABIAN NIGHTS (Williams) ramp guard with cable and switch as...
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

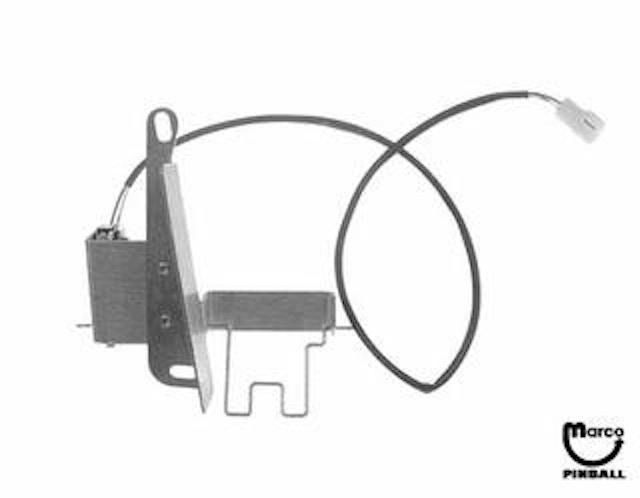

Williams TALES OF THE ARABIAN NIGHTS ramp guard ball gate with cable and switch assembly.
Ships un-assembled.
Reference:
A-20811
01-14263.1 (1) guard-ramp
01-14274 (1) bracket-gate
01-8240 (1) plate-nut #2-56
07-6688-17N (2) rivet 5/32X1/8 nickel
12-7337 (1) gate-wireform-ramp guard
4002-01105-07 (2) ms 2-56x7/16 p-ph-s
4700-00003-00 (1) fw .125X.281X.032
5070-09054-00 (1) diode-1N4004 1.0a
5647-12693-36 (1) switch sub mini micro
5791-10772-00 (1) 2P11625 03-06-2023
5820-09078-00 (2) pm1560 02-06-2101
CW-30022-51 (19) wire 22awg grn/brn
CW-30022-95 (19) wire 22awg wht/grn
H-20861 (1) ramp enter
RM-23-01 (16) tubing-heat shrink-1/8 poly
