TALES ARABIAN NIGHTS Vanishing magnet assembly kit
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

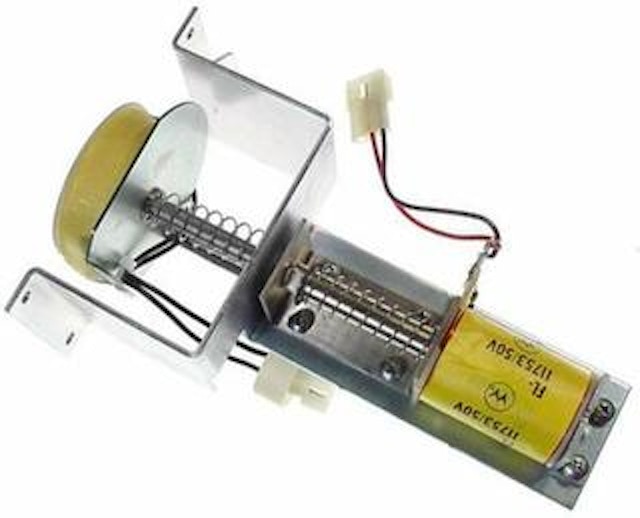

Williams TALES OF THE ARABIAN NIGHTS vanishing magnet assembly
Ships un-assembled. Wire harness not included.
Reference:
A-20644 vanishing magnet assembly01-14166 bracket-vanish magnet shaft01-14179 plate-vanishing magnet01-14182 bracket-vanishing magnet post02-5231 plunger-vanishing magnet02-5234 shaft-vanishing magnet02-5251 post-guide03-7066-5 tubing-coil03-7655-12 clamp cable 3/4 inch dia.03-9454 cable tie 4 inch long04-10307 bracket-vanishing magnet04-10373 pole piece-vanishing magnet10-406 spring20-10197 coil magnet-w/breaker small hole20-8712-43 e-ring 7/16 shaft20-8790-2 nyliner bearing4008-01003-04 (2) machine screw 8-32x 1/4 p-ph s4008-01003-10 (2) machine screw 8-32 x 5/8 p-ph-s4010-01008-06 (2) machine screw 10-32X3/8 p-ph-n4408-01119-01 (3) nut 8-32 esna/ntm4700-00011-00 (1) flat washer .172 x .437 x .0594701-00004-00 (2) lock washer #10 split5791-09111-00 (1) 3p1396 03-09-20325820-09080-00 (2) terminal-pm1190 02-09-2101A-10821 flipper stop bracketFL-11753 flipper coil-yellow
Select manufacturer to view game compatibility
TALES ARABIAN NIGHTS (WMS) Vanishing magnet bracket
Williams TALES OF THE ARABIAN NIGHTS pinball machine vanishing magnet plun...

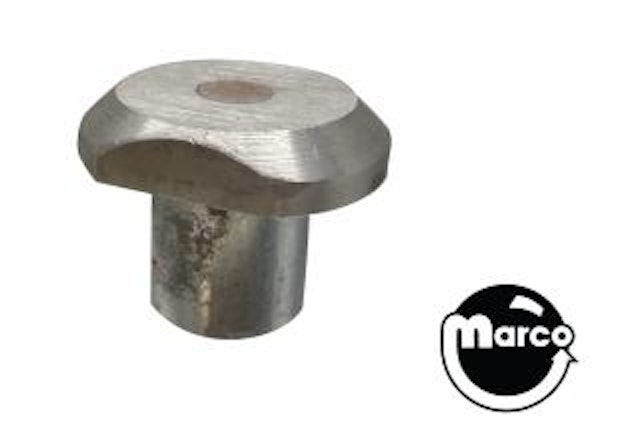

Pole piece - vanishing magnet
Bracket for Vanishing Magnet on Williams TALES OF THE ARABIAN NIGHTS.
TALES ARABIAN NIGHTS (WMS) Magnet plate

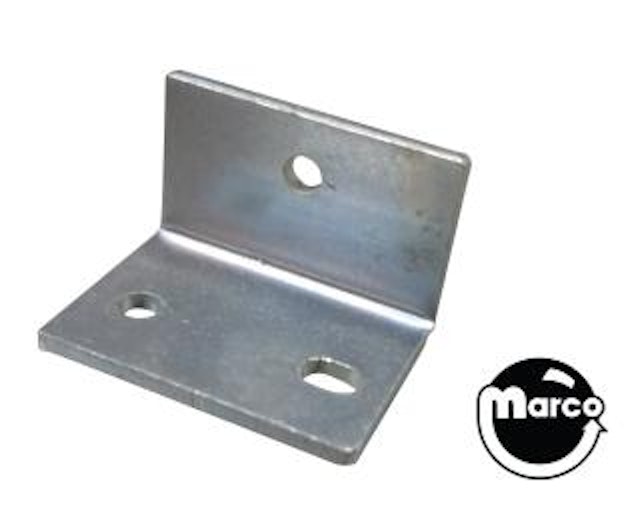

Bracket-vanishing magnet post
Vanishing magnet Shaft used on Williams TALES OF THE ARABIAN NIGHTS pinbal...
Used on Williams TALES OF THE ARABIAN NIGHTS playfield.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Cable clamp 3/4 inch diameter single
Cable tie 4 inch single piece

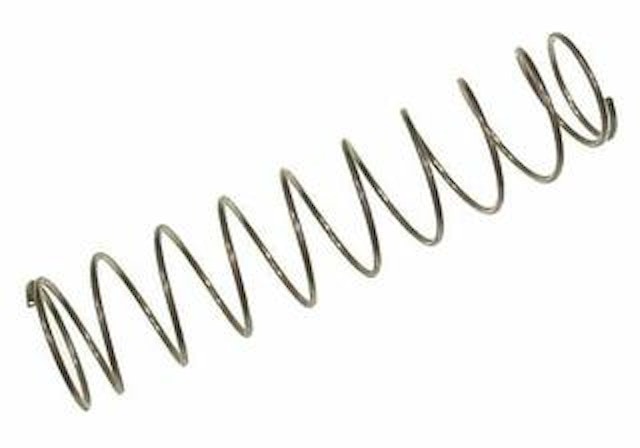

Spring - compression
Magnet coil used Bally / Williams pinball machines
E-clip or e-ring commonly used on many mechanisms. 7/16 in. measured at the o...
Nyliner nylon bearing 5/16 inch inner diameter.
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Machine Screw 8-32 x 5/8" long pan head phillips with external tooth lockw...
Machine Screw 10-32 x 3/8 inch p-ph nylock.
Stop nut 8-32 thread.
Washer .172 x .437 x .059 inches
#10 steel split lock washer. Zinc plated.
Flipper coil stop for 1987 Williams F-14 TOMCAT, SPACE STATION, FIRE!, BIG...
3 terminal, dual winding flipper coill is used on the following machines:...
