ATTACK FROM MARS (Bally) Motor assembly 3-bank
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Bally ATTACK FROM MARS pinball machine 3-bank motor assembly
Ships un-assembled
Reference:

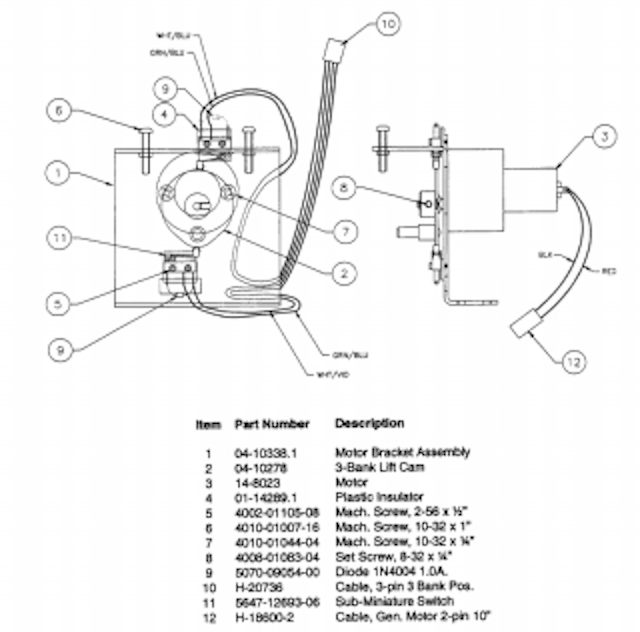

A-20572 motor assembly 3-bank01-14289.1 (2) insulator-plastic03-7520-2 (1) tie wrap-nylon 3 7/804-10278 (1) cam-3 bank lift04-10338.1 (1) bracket-motor (3-bank)14-8023 (1) motor-visor drive4002-01105-08 (4) ms 2-56x1/2 p-ph-s4008-01083-04 (1) ss 8-32x1/4 sh-cp-n4010-01007-16 (2) ms 10-32x1 p-ph (unf)4010-01044-04 (2) ms 10-32 1/4 p-flh5070-09054-00 (2) diode-1N4004 1.0a5647-12693-06 (2) switch sub mini micro5791-10770-00 (1) 3p11625 03-06-2032 nmt sm5792-10817-02 (1) 2r mt end 22/1565820-09078-00 (3) pm1560 02-06-2101CW-30022-0 (10) wire 22awg blackCW-30022-2 (10) wire 22awg redCW-30022-56 (12) wire 22awg grn/bluCW-30022-96 (7) wire 22awg wht/bluCW-30022-97 (9) wire 22awg wht/vioH-18600-2 (1) general motor 2 pin-10"H-20736 (1) 3 pin 3 bank position cable
Select manufacturer to view game compatibility

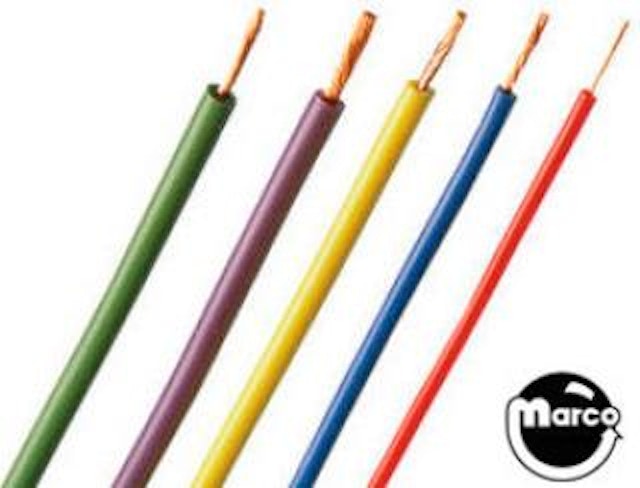

Wire 22 awg black / ft
ATTACK FROM MARS (Bally) Insulator
Target assembly motor Bally/Williams

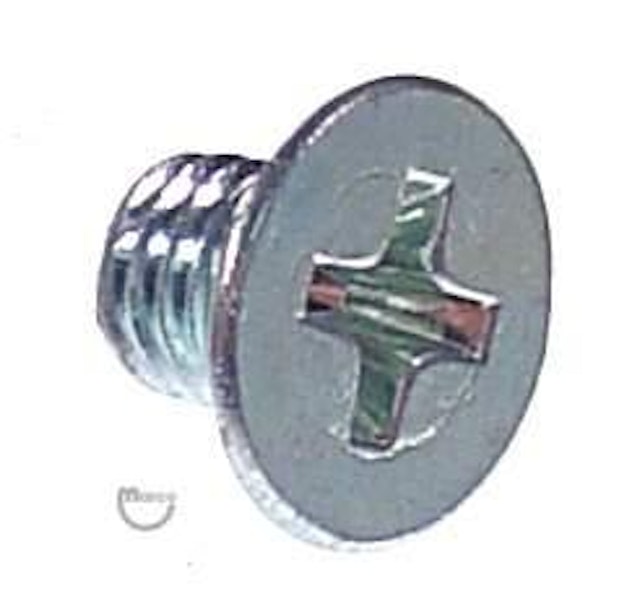

Machine Screw 10-32 x 1/4 inch p-flh
wire 22awg grn/blu
wire 22awg wht/blu

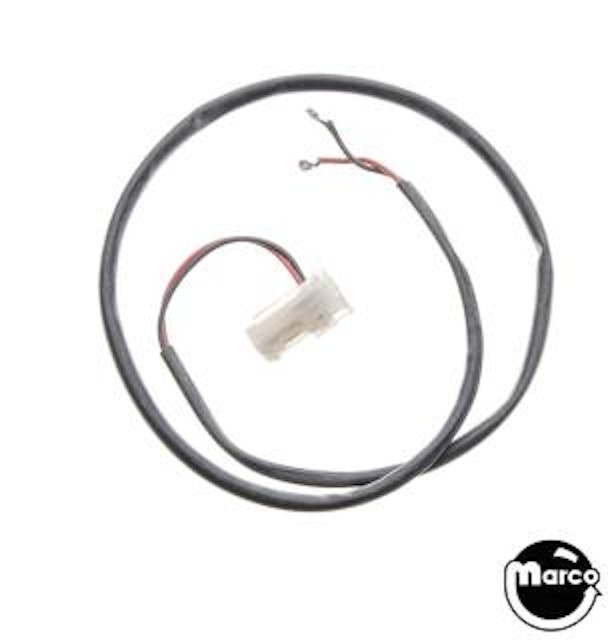

general motor 2 pin-10 inch USE H-18600-6
E-63 switch with micro roller. REPLACES the 180-5119-00 and 180-5119-01
2r mt end 22/156
Wire 22awg red / ft
Bracket-motor (3-bank)
This is the small phillips panhead screw used to secure most playfield mic...
Set screw 8-32 x 1/4 inch sh-cp-nylon
Machine Screw 10-32 x 1 p-ph (unf)
Terminal pm1560
wire 22awg wht/vio
3 position plug uses .062 inch crimp terminals.
Cable tie 3-7/8 inch nylon - single
