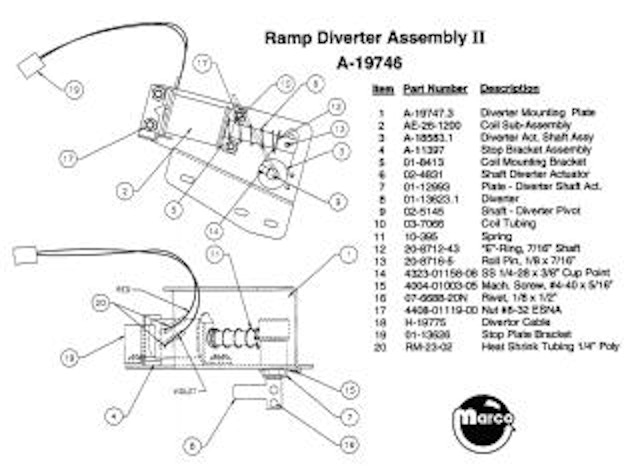

DIRTY HARRY (Williams) Diverter assembly right
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Williams DIRTY HARRY pinball machine right diverter assembly.
Ships un-assembled.
Reference:
A-19746 diverter assembly-right01-12993 (1) plate-diverter actuator01-13623.1 (1) flag01-13626 (1) bracket-coil hold01-8413 (1) bracket coil mtg02-4831 (1) shaft diverter actuator02-5145 (1) shaft-diverter03-7066 (1) tubing-coil07-6688-20N (2) rivet 1/4 x 1/8 nickel10-395 (1) spring-red20-8712-43 (1) e ring 7/16 shaft20-8716-5 (1) pin roll 1/8 x 7/164004-01003-05 (2) ms 4-40 x 5/16 p-ph-s4323-01158-06 (1) ss 1/4-28 x 3/8 sh-kn-cp4408-01119-00 (4) nut 8-32 esn5791-12570-00 (1) 1545-Z 03-09-20225820-09080-00 (2) terminal-pm1190 02-09-2101A-11397 (1) drop target stop bracketA-18583.1 (1) diverter shaft actuatorA-19747.3 (1) plate-diverter mtgAE-26-1200 (1) coilH-19775 (1) single coil cable 8"HW-30018-2 (8) wire 18awg redHW-30018-7 (8) wire 18awg violetRM-23-02 (2) heat shrink tubing 1/4" polyRM-23-03 (5) heat shrink tubing 3/16 dia
