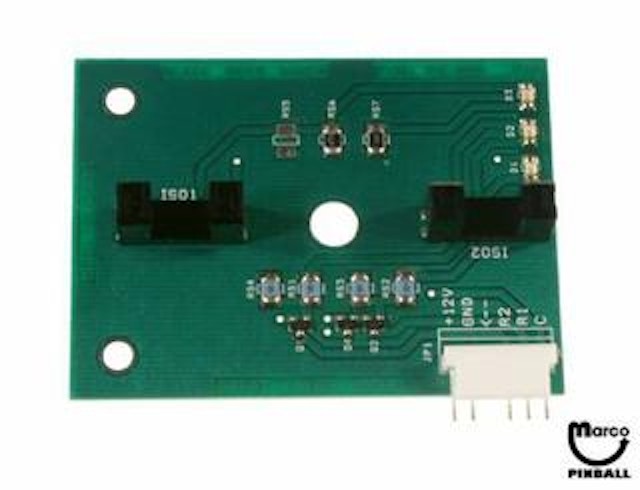

ROAD SHOW (Williams) Opto board

Name: ROAD SHOW (Williams) Opto board
SKU: A-19359
Price: 49.99 USD
Availability: OutOfStock

#A-19359Out of Stock

New design Williams ROAD SHOW pinball machine blade opto board. This...

$49.99

This product is not currently available.

CALIFORNIA WARNING

This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product Details

New design Williams ROAD SHOW pinball machine blade opto board.

This board is used on the ROAD SHOW dozer blade assembly

This board has two optical switches that determine the position of the dozer blade in front of Ted's head on the playfield. The motor shaft on the assembly has a plastic disc with one blade which passes through the two optical switches. The game knows when the blade is up or down depending on which switch is interrupted. Features:

Wide-slot optical switches eliminates rubbing of the plastic interrupter.
Larger traces and pads for better reliability and longevity.
Visual status LEDs indicators for the two optical switches. They also allow precise positioning of the dozer blade.

Reference:
