Bally THE SHADOW complete mini playfield drop target Battlefield assembly...
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Bally THE SHADOW complete mini playfield drop target Battlefield assembly - includes bracket, coil, targets, PC board.
Ships un-assewmbled
Reference:
A-18783 drop target assembly
01-9548 (1) brkt coil mtg
03-7066-4 (1) tubing-coil
03-8334-4 (1) target stop 5 3/16
10-364 (4) spring-retractor
10-392 (4) spring-extension
20-8712-18 (4) e ring 3/16 shaft
20-8712-25 (8) e ring 1/4 shaft
23-6626 (4) grommet
4004-01005-04 (5) ms 4-40X1/4 p-ph
4408-01119-00 (4) nut 8-32 esn
4700-00016-00 (2) fw .187X.437X.053
4700-00072-00 (8) fw .265X.500X.032
A-11397 (1) drop tgt stop bkt
A-18781 (1) brkt & post assy
A-19552 (4) target cap assy
A-19651 (1) 4 bank reset plate assy

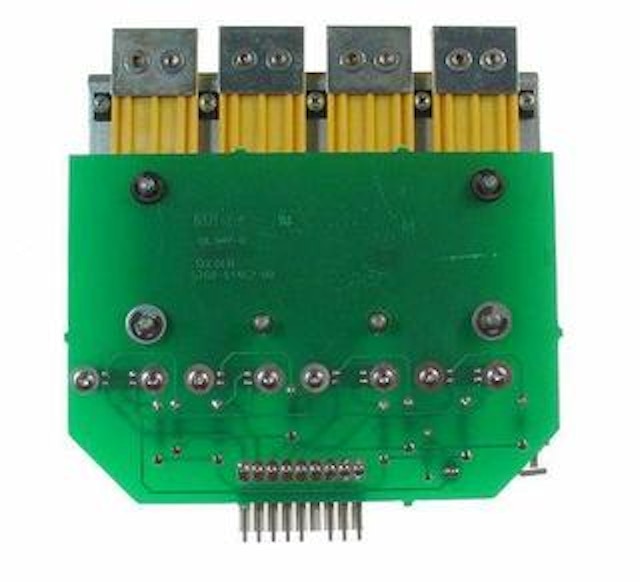

A-19666 (1) pcb assy-4 bnk d/tgt cornerd
AE-25-1000 (1) coil assy comp
Select manufacturer to view game compatibility
Machine Screw 4-40 x 3/16 inch p-ph
Washer .187 x .437 x .053 inch #8 SAE
Bracket - coil mount
Machine screw with 4-40 thread and 1/4" long with phillips pan head
Elastic stop nut used on the thumper bumper brackets and other mechanisms.
E-clip or e-ring commonly used on many mechanisms. 20A-8712-25 270-5002-00

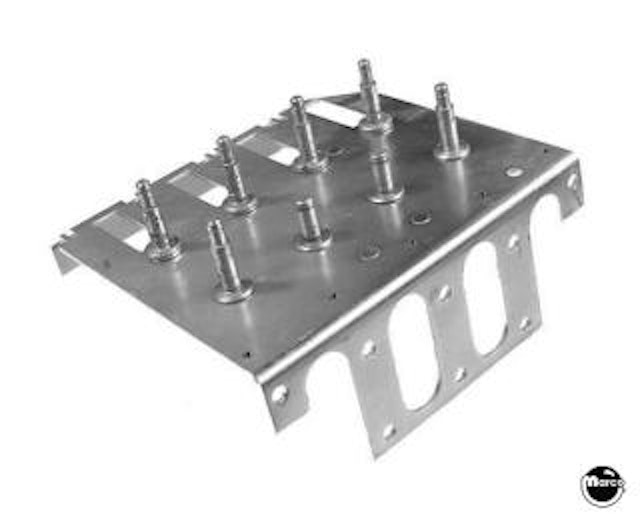

Bally THE SHADOW drop target bracket and post assembly
Drop target rest ledge 5.1875 inch 4 bank
Compression spring.
E-clip or e-ring commonly used on many 3/16" mechanism shafts
Solenoid coil
Bally SHADOW pinball machine drop target with riveted metal cap top.
Drop target 4 bank PCB - cornered
Nylon coil sleeve - 2-1/16 inch
Flipper return and drop target return spring
Rubber grommet - 3/8 inch OD
Drop target reset assembly 4 bank
Flat washer 0.265 inch x 0.500 inch x 0.032 inch
Coil stop bracket for target mechanisms.
Nut 3/8-16 esn stop nut M-319-7
Machine Screw 5-40 x 1/4 inch p-ph
