SHADOW (Bally) Ramp small assembly
SHADOW (Bally) small ramp assy
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Product Details

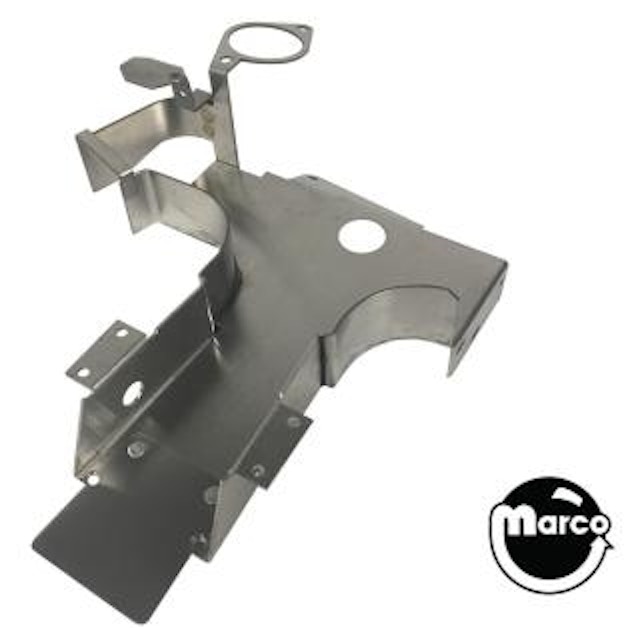

Bally SHADOW small ramp welded assembly
Reference:
A-17854 ramp assembly small
01-12467.2 (1) flap-small ramp
01-13591.1 (1) guard opto-fishpaper
03-7520-2 (6) tie wrap-nylon 3 7/8
03-8149-12 (1) dome-mini tr-orange
07-6688-16N (2) rivet 1/8X1/8 nickel
24-8802 (1) bulb #906 13V 0.69
24-8803 (1) socket-large pcb twist
31-2002-16 (1) playfield plastic-the shadow
4006-01168-06 (1) ms 6-32X 3/8 pl-hh-s
4106-01013-08 (4) sms #6 x 1/2 p-ph t-25
4106-01115-06Y (2) sms #6x3/8 pl-hwh-yel
4700-00005-00 (2) fw .141X.437X.032
5768-12297-00 (1) pcb-single fl lamp
5791-10770-00 (1) 3p11625 03-06-2032 nmt sm
5791-10774-00 (1) 4P2004 03 06-2044
5820-09078-00 (6) pm1560 02-06-2101
A-16908 (1) opto led
A-16909 (1) opto p/t
A-17856.1 (1) ramp welded small
A-19160-1 (1) ring
B-12156 (1) single flash lamp
CW-30022-0 (9) wire 22awg black
CW-30022-29 (11) wire 22awg red/wht
