Ball gate actuator assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Ball gate actuator coil assembly
Cable is available separately. Ships un-assembled
Reference:
A-17796
01-12348 (2) bracket-ball gate coil
10-120 (2) spring-armature
10-194 (2) spring-extension
4008-01021-07 (2) screw 8-32 x 7/16 p-rh-brass
4700-00089-00 (2) washer .172 x .437 x .062 brass
4701-00003-00 (2) lw #8 split
5791-12570-00 (2) 1545-Z 03-09-2022
5820-09080-00 (4) terminal-pm1190 02-09-2101
A-11146 (2) ball gate armature assy
A-14406 (2) coil assy
A-6892 (2) frame & eyelet assy
Select manufacturer to view game compatibility
lock washer #8 split

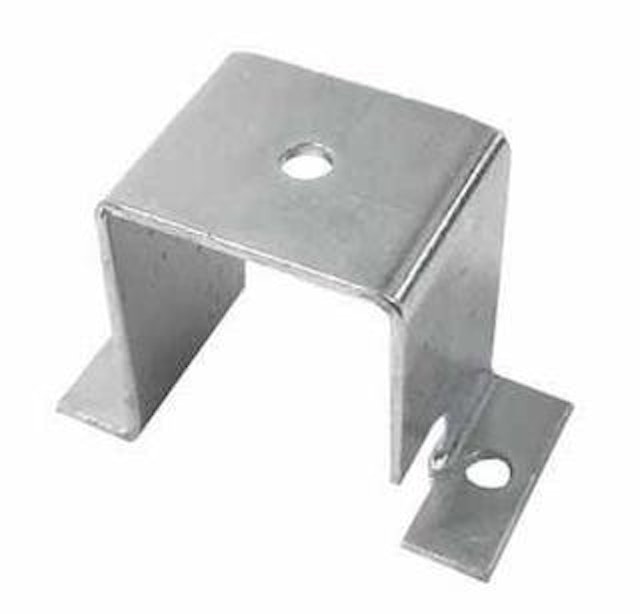

Ball gate coil metal bracket Williams / Bally
Frame & eyelet assembly. Reference: A-6892
Spring - extension
Washer .172 x .437 x .062 inch brass

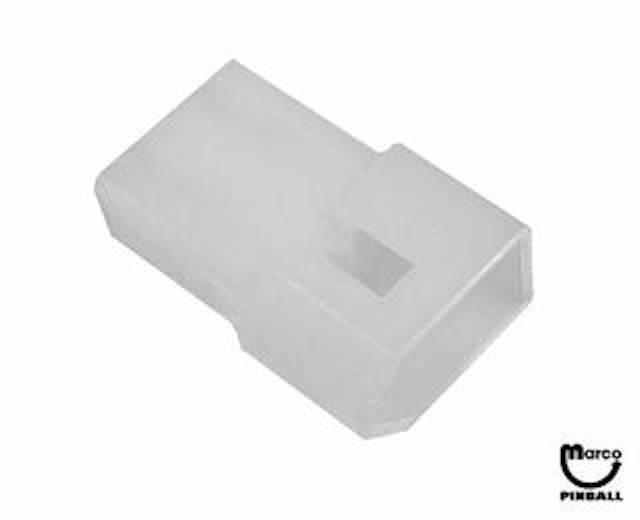

2 position plug with no mounting ears uses .093" crimp terminals.
Spring - extension armature plate.
Machine Screw 8-32 x 7/16" p-rh-brass

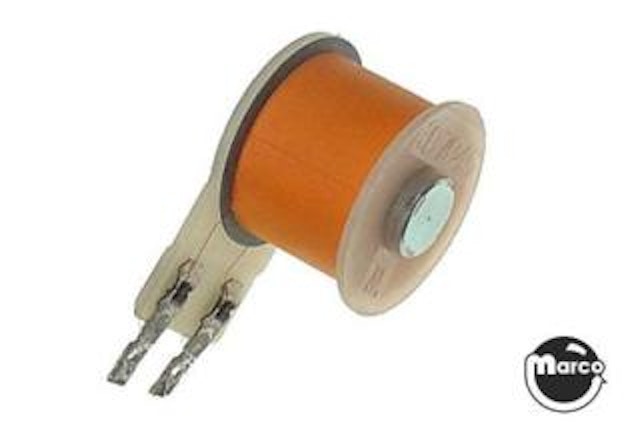

Coil - relay
Armature. Reference: A-15821
Williams armature tip used in: AFM, BoP, CC, Congo, Corvette, DH, FS, F...
Machine screw with 6-32 thread and 3/16" long with phillips pan head and attached lockwasher.
