Bally / Williams ramp diverter assembly kit
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

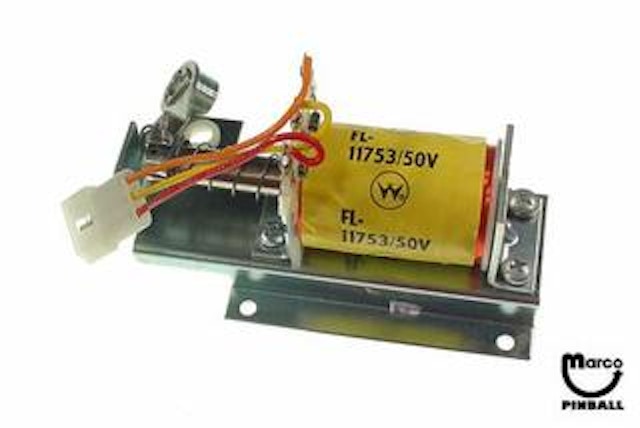

Bally / Williams ramp diverter asembly.
Bracket, Fl-11753 coil, plunger included. Diverter arm A-20556 not part of this assembly.
Ships un-assembled
Reference:
A-17241 diverter assembly
01-11957 (1) brkt ramp diverter mtg
01-7695-1 (1) brkt-solenoid
03-7066-5 (1) tubing-coil
10-303 (1) spring-master
20-8790 (1) nyliner bearing
4006-01017-04 (2) ms 6-32X1/4 p-rh-s
4010-01066-06 (2) cs 10-32 X 3/8 sh
4010-01169-04 (1) ss 10-32X1/4 sh-cp-n
4701-00004-00 (2) lw #10 split
A-12390 (1) flpr stop brkt
A-14185 (1) drive arm assy
A-16636 (1) diverter plunger assy
A-20099 (1) coil assy
Select manufacturer to view game compatibility

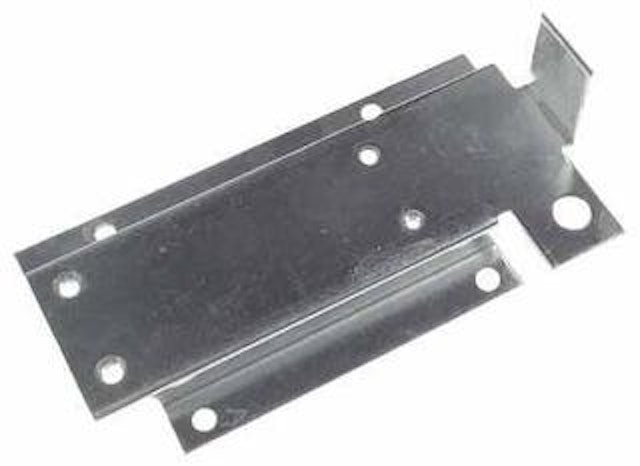

Diverter bracket Bally/Williams
Save 50% on 10 or more pieces. Black 10-32 X 3/8 hex socket head cap s...
Williams coil bracket used on most late model Williams and Bally/Williams.
Later style coil stop used in Williams/Bally games from 08/1993 to 06-1999...
Black finish 10-32 x 1/4 inch set screw with locking compund patch. 3/32 inch drive.
Standard snap-in Nyliner® bearing bushing with 1/4 inch Inner Diameter
Diverter plunger and spring assembly kit.
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Spring - compression master
Drive arm assembly used in solid state Williams/Bally games.
Replaced by 4006-01003-04
Three terminal coil used in Bally / Williams pinball machines. Refere...
