STAR TREK NEXT GEN (WMS) diverter assembly kit
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

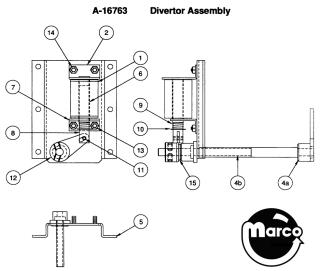

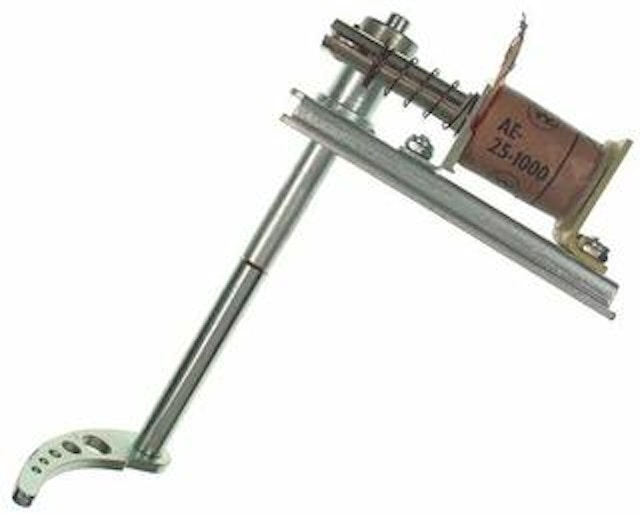

Williams STAR TREK THE NEXT GENERATION pinball machine diverter assembly kit
Ships dis-assembled as a kit
Reference:
A-16763
Select manufacturer to view game compatibility

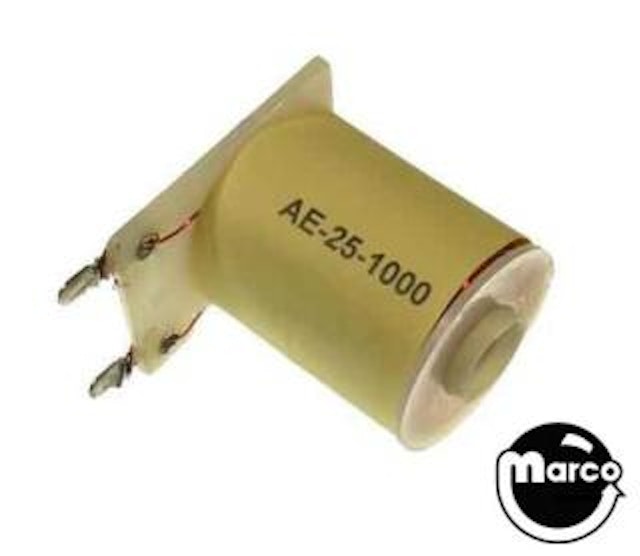

Solenoid coil
Elastic Stop Nut used on rod and ring (A-4754) assemblies.
Coil stop
1/8" diameter x 7/16" length slotted spring roll pin. Reference:...

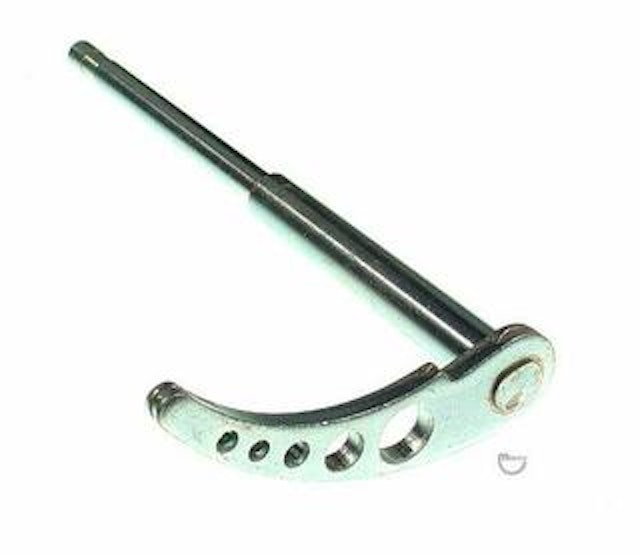

STAR TREK NEXT GEN (WMS) Diverter shaft
E-clip or e-ring commonly used on many mechanisms. 7/16 in. measured at the o...

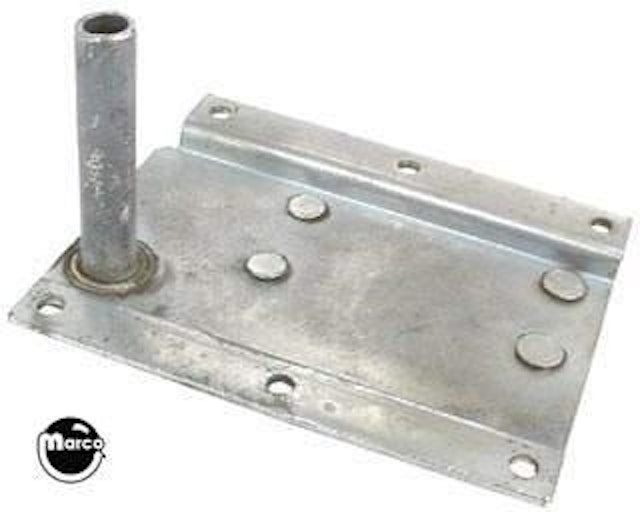

Williams STAR TREK THE NEXT GENERATION Divertor base and bushing stud assy...
Coil sleeve (plastic tubing) is the most commonly used size on all machines.
Flat washer .361" x .500" x .059" thick.
Bracket - coil mounting
Spring - compression
Plunger - divertor actuator 2-3/8 inch long
Set screw 1/4-28 x 3/8 inch sh-kn-cp.
Stop nut 8-32 thread.

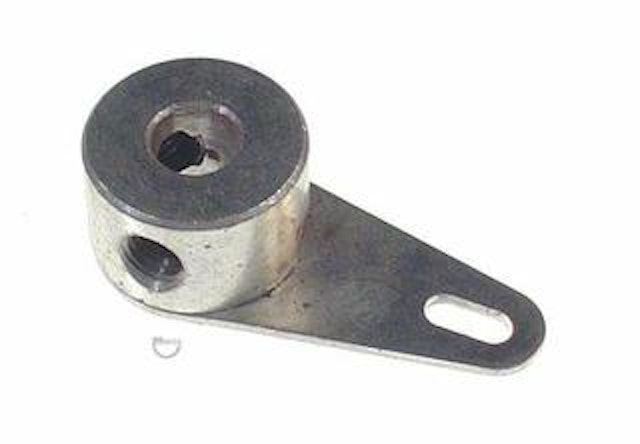

Divertor actuator crank for Williams STAR TREK THE NEXT GENERATION.
