This is the newly redesigned 5 bank drop target Opto Sensor Board used...
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

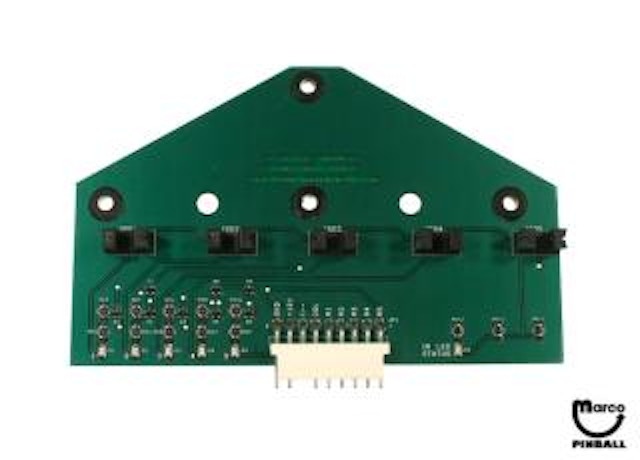

This is the newly redesigned 5 bank drop target Opto Sensor Board used on the Bally JUDGE DREDD pinball machine.
Features:
Lower current usage and heat generation
Larger traces and pads for better reliability and longevity
Stiffer board reduces vibration failures
Visual status LEDs added for each switch position, as well as for the IR (infra red) chain.
The drop targets on the Bally JUDGE DREDD pinball machine are difficult to keep working properly. They get dirty and sticky over time. This may lead to some drop targets not dropping down completely. With the original board, this may cause the game to not register the target until it completely drops. Since the drop targets are crucial to the game play, a sticky switch can cause major player frustration.
With this redesigned board, the switch locations have been moved to trigger nearly 1/4 of an inch sooner than the original board. Should a drop target fail to drop completely, it should still trigger the switch and register during game play.
Reference:
A-16947 drop target assembly
A-16486 drop target opto board assembly
5490-13341-00 opto sensor
Select manufacturer to view game compatibility

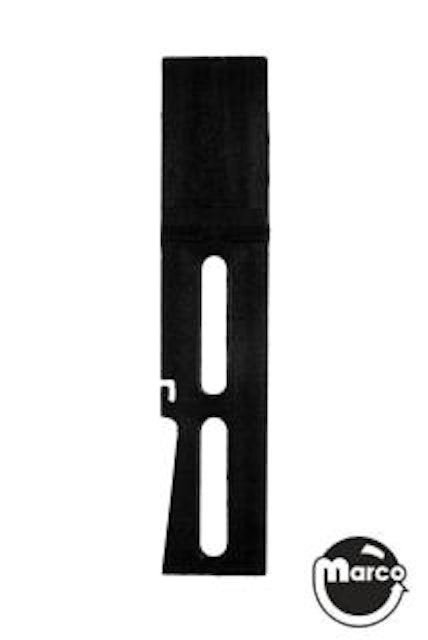

Williams black drop target flat. Same as #03-8036

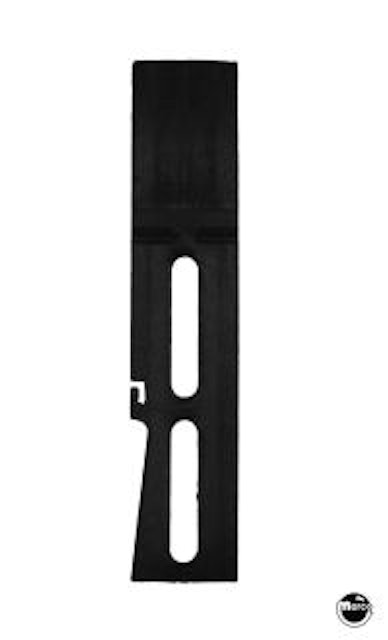

Williams / Bally black plastic drop target with 3/8" wide wedge shaped top...
Flipper return and drop target return spring
Zinc plated stopnut 10-24 thread with nylon insert.
Common solenoid coil used on many manufacturers pinball machines.
LED Lamp complete conversion kit for Bally JUDGE DREDD pinball machine
JUDGE DREDD (Bally) Coil sleeve kit
Bally JUDGE DREDD pinball machine 5 bank drop target opto switch board.
