JUDGE DREDD (Bally) Planet assy
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

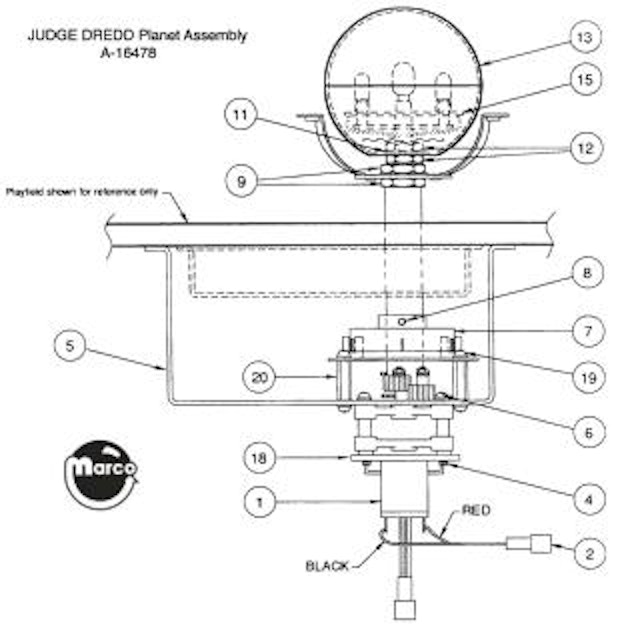

Bally JUDGE DREDD pinball planet assembly
Ships un-assembled
Reference:
A-16478 planet assembly02-4466-8 (4) spacer f-f 8-32x 15/16 1/4hex02-4776 (2) nut 750-1602-4777 (2) nut 1/2-2703-7520-2 (8) tie wrap-nylon 3 7/803-8858 planet03-8869 lower interrupter14-7985 motor4008-01005-06 (8) machine screw 8-32 x 3/8 p-ph4008-01017-06 (4) machine screw 8-32 x 3/8 p-rh-s4008-01017-08 (2) machine screw 8-32 x 1/2 p-rh-s4008-01083-03 ss 8-32 x 1/2 sh-cp-n4408-01128-00 (2) nut 8-32 keps4702-00019-00 lock washer 1/2 internal tooth4702-00023-00 lock washer 3/4 internal tooth5791-10772-00 (2) 2P11625 03-06-20235792-10817-02 2r mt end 22/1565820-09078-00 (4) pm1560 02-06-2101A-16336 washer & legA-16475 lightA-16527 bracket & optoA-16598 planet opto pcbA-16808 motor bracketCW-30022-0 (22) wire 22awg blackCW-30022-2 (22) wire 22awg redCW-30022-29 (23) wire 22awg red/whtCW-30022-5 (23) wire 22awg greenCW-30022-62 (23) wire 22awg blu/redCW-30022-95 (23) wire 22awg wht/grnH-16901 planet cable-20020H-16961 planet-motor cable 20020RM-23-03 (9) heat shrink tubing 3/16 dia
Select manufacturer to view game compatibility

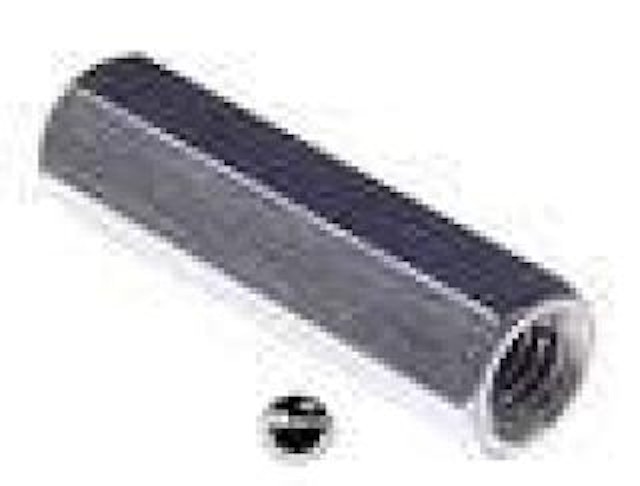

Hex spacer f-f 8-32 x 15/16"
Nut - 1/2-27
Cable tie 3-7/8 inch nylon - single
JUDGE DREDD (Bally) plastic planet

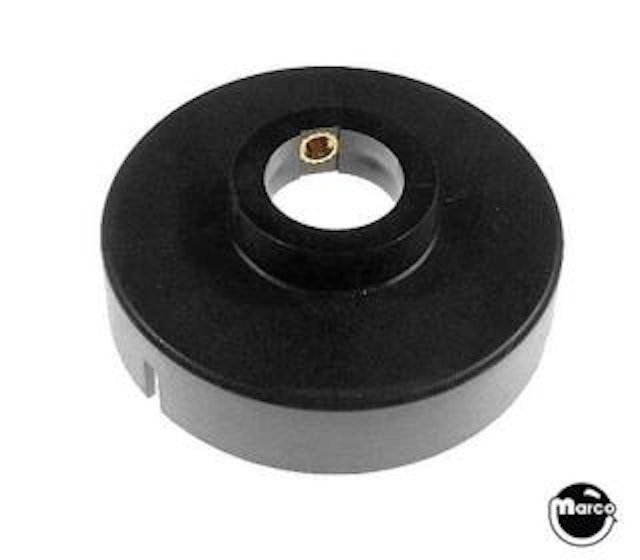

JUDGE DREDD (Bally) lower interrupter
JUDGE DREDD (Bally) Planet motor
Machine Screw #8-32 x 3/8 inch long phillips pan head.
Set screw 8-32 x 1/2 inch sh-cp-n
Machine screw 8-32 thread x 3/8 inch long phillips round head. Replaced by 4008-01003-06
JUDGE DREDD (Bally) Motor bracket
Machine screw 8-32 thread x 1/2" long phillips round head with sems extern...
Bally JUDGE DREDD pinball machine planet Opto Board assembly. Referen...

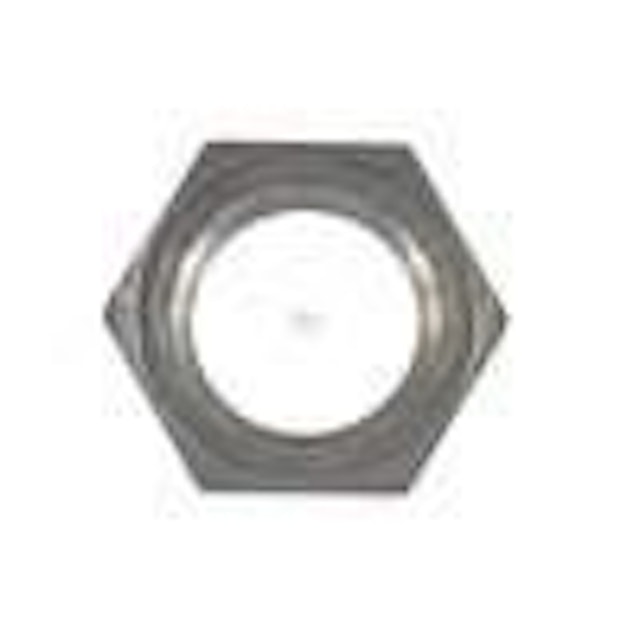

Nut - 750-16
Nut 8-32 keps
2r mt end 22/156
JUDGE DREDD (Bally) Planet cable
planet-motor cable 20020

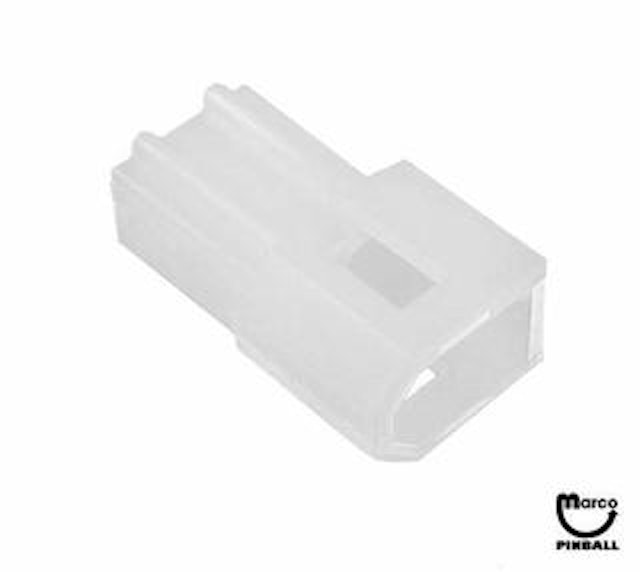

2 position connector uses .062 inch crimp terminals.
Terminal pm1560

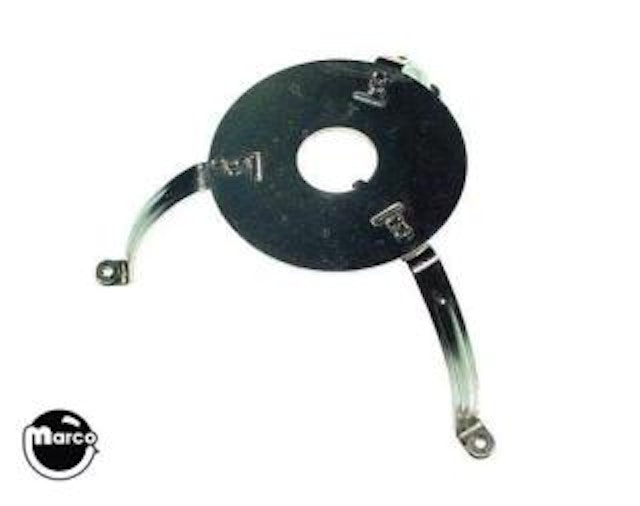

Bally JUDGE DREDD washer & leg. Reference: A-16336
This is a 3 lamp playfield assembly for Bally JUDGE DREDD.
