Williams ball popper and opto assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

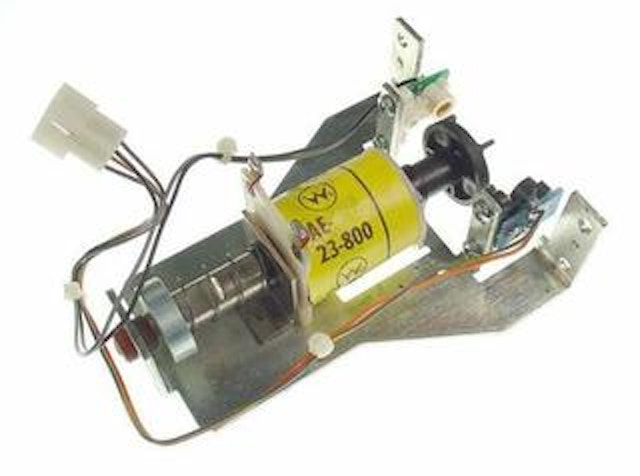

Williams ball popper and opto assembly.
Includes Williams AE-23-800 coil plunger with ball popper, opto set, bracket and cable with connector.
Ships un-assembled
Reference:
A-15769 ball popper & opto assy01-9794 (1) bracket mounting02-4668 (1) armature & extension03-7067-5 (1) tubing-coil03-7520-2 (3) tie wrap-nylon 3 7/803-8561 (1) cup-ball popper10-135 (1) spring-plunger23-6420 (1) grommet4008-01017-04 (2) ms 8-32X1/4 p-rh-s4106-01013-06 (4) sms #6 x 3/8 p-ph t-254106-01152-06 (1) sms #6x3/8 tfp-fl5791-09188-00 (1) 4P1625 03-06-20425820-09078-00 (4) pm1560 02-06-2101A-15914 (1) ball popper bracketA-16908 (1) opto ledA-16909 (1) opto photo xmtrAE-23-800 (1) coil assy
Wire harness not included:
CW-30022-0 (10) wire 22awg blackCW-30022-3 (10) wire 22awg orangeCW-30022-8 (10) wire 22awg grayCW-30022-84 (10) wire 22awg gry/yelH-16229 (1) plfd opto cable
Select manufacturer to view game compatibility
Bracket - coil mount
Plunger assembly 3.875 inches 2A-4668
Coil sleeve - 2-1/16 inch with 3/16 inch flange
Cable tie 3-7/8 inch nylon - single
Williams ball popper cap Reference: 03-8561
Common compression spring used on flippers, pop bumper, ball kickers, ball poppers.
Used as plunger rest on up-kickers, knockers, pop bumper assemblies, etc.
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Sheet Metal Screw #6 x 3/8 inch p-ph t-25
#6-19 X 3/8 Phillips flat plastite thread rolling screw, steel and zinc...

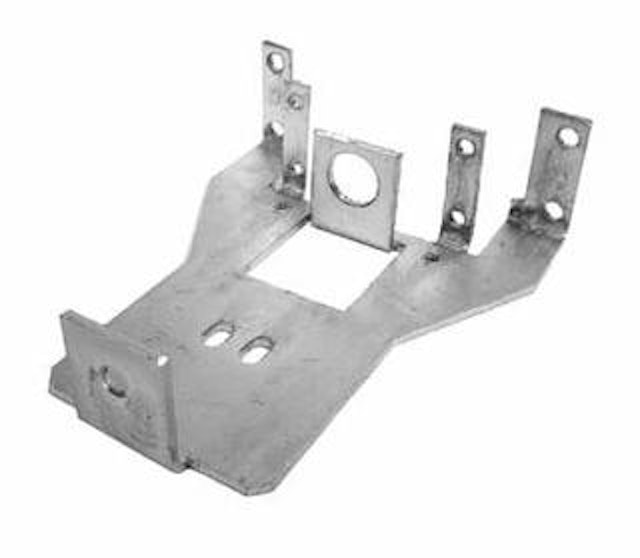

Bracket - ball popper and upkicker
Infrared Transmitter assembly in the white plastic housing.
Infrared receiver assembly in the black plastic housing.
090-5001-00/0T common solenoid coil used on many manufacturers pinball machines
