Williams MEDIEVAL MADNESS pinball machine catapult assembly kit.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Williams MEDIEVAL MADNESS pinball machine catapult assembly kit.
Ships un-assembled.
Reference:
A-14947-1 catapult assembly01-8413 (1) bracket coil mtg02-4301 (1) pin catapult arm03-7066 (1) tubing-coil03-7520-2 (1) tie wrap-nylon 3 7/803-8089 (1) catapult arm10-135 (1) spring-plunger20-8712-31 (2) e-ring 5/16 inch shaft23-6577 (1) rubber bumper plug 5/8 inch23-6622 (1) tape-double sided4004-01003-10 (2) ms 4-40 x 5/8 p-ph-s4008-01017-04 (2) ms 8-32 x 1/4 p-rh-s4010-01066-06 (2) cs 10-32 x 3/8 sh4700-00104-00 (2) fw .361 x .500 x .0594701-00004-00 (2) lw #10 split5070-09054-00 (1) diode 1N4004 1.0a5647-12133-12 (1) switch mini micro5791-10772-00 (1) 2P11625 03-06-20235791-12570-00 (1) 1545-Z 03-09-20225820-09078-00 (2) pm1560 02-06-2101820-09080-00 (2) terminal-pm1190 02-09-2101A-10821 (1) flipper stop bracketA-14946 (1) catapult bracketA-22020 (1) solenoid plungerA-7438-1 (1) terminal stripAL-23-800 (1) coil assemblyCW-30022-5 (3) wire 22awg greenCW-30022-9 (3) wire 22awg whiteH-16437 (1) mini switch cableH-19523 (1) 2 pin cable-solenoidHW-30018-2 (3) wire 18awg redHW-30018-7 (3) wire 18awg violet
Select manufacturer to view game compatibility
Coil sleeve (plastic tubing) is the most commonly used size on all machines.
Bracket - coil mounting
Flipper coil stop for 1987 Williams F-14 TOMCAT, SPACE STATION, FIRE!, BIG...
Machine screw with 4-40 thread and 5/8" long with phillips pan head
Williams Catapult arm pin. Reference: 02-4301
Common compression spring used on flippers, pop bumper, ball kickers, ball poppers.
Two terminal coil with no diode
Miniature microswitch switch with 1-3/4" flat actuator.
Cable - wiring harness 2 pin
Mini switch cable assembly
#10 steel split lock washer. Zinc plated.
Flat washer .361" x .500" x .059" thick.
E-clip or e-ring commonly used on many mechanisms. 5/16" measured at the o...
Black plastic Catapult Arm used on: BIG GUNS. BLACK ROSE. CHAMPION...

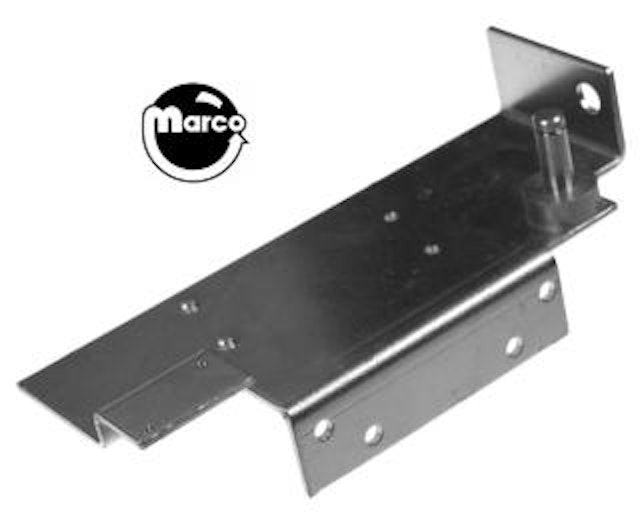

Catapult bracket
Black rubber grommet, bumper plug. Reference Numbers: Williams #2...
Save 50% on 10 or more pieces. Black 10-32 X 3/8 hex socket head cap s...
Plunger and link assembly for pre-Fliptronic style Data East and Williams...
Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Terminal strip assembly used in WPC Williams/Bally series games Referen...
Diode - 400 volts 1 amp XO-254
