Drop target assembly Williams single - left

Single bank drop target assembly for WPC system Williams pinball machines. Includes bracket, coil, plunger, switch.

Ships un-assembled

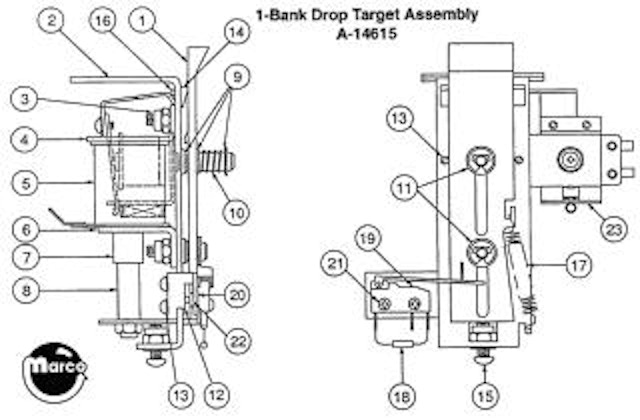

Reference:

• A-14615

• 01-10183 (1) bracket switch

• 01-8413 (1) bracket coil mtg

• 01-8600 (1) insulator

• 03-7066-4 (1) tubing-coil

• 03-8034 (1) stop-single target

• 03-8630 (1) guide actuator

• 03-8750 (1) target-flush

• 07-6688-17N (2) rivet 5/32 x 1/8 nickel

• 10-392 (1) spring-extension

• 10-433 (1) spring-extension

• 20-8712-25 (2) e ring 1/4 shaft

• 4002-01105-12 (2) ms 2-56 x 3/4 p-ph-s

• 4006-01003-03 (4) ms 6-32 x 3/16 p-ph-s

• 4010-01025-14 (1) ms 10-32 x 7/8 p-rh

• 4402-01119-00 (2) nut 2-56 esna

• 4408-01119-00 (4) nut 8-32 esn

• 4700-00003-00 (4) fw .125 x .281 x .032

• 4700-00072-00 (4) fw .265 x .500 x .032

• 5070-09054-00 (1) diode-1N4004 1.0a

• 5647-12693-31 (1) switch sub mini micro

• A-11388-2 (1) plunger & reset plate

• A-11397 (1) drop target stop bracket

• A-14617 (1) bracket & post
