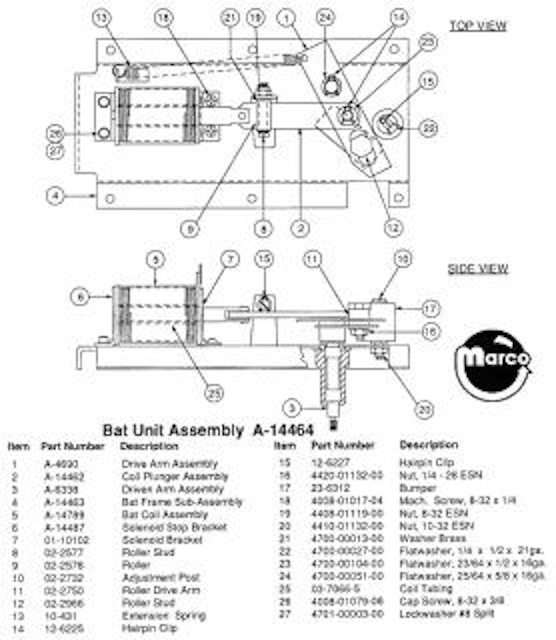

SLUGFEST (Williams) Bat unit assembly
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Williams SLUGFEST Bat unit mechanism.
Ships un-assembled
Reference:
A-14464
Bat unit roller drive arm
SLUGFEST (Williams) Bat Unit Frame
Williams SLUGFEST pitch & bat baseball machine batting unit plunger and li...
Baseball bat driver arm assembly
Bat unit shoulder bolt 2A-2966

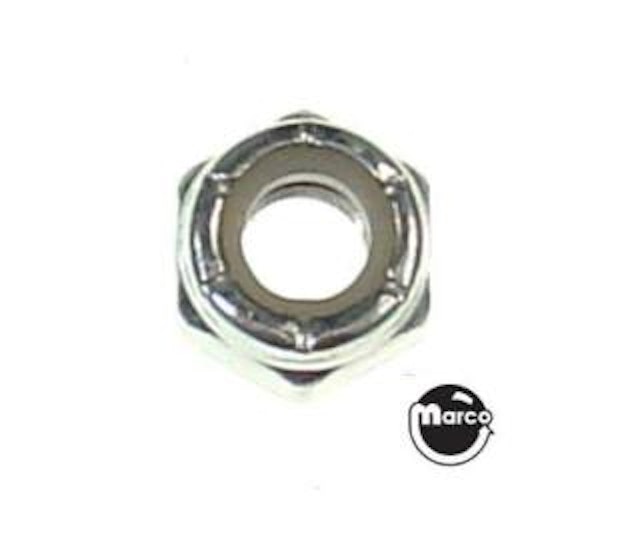

Nut 1/4-28 esn
Rubber sleeve black 3/4 inch OD

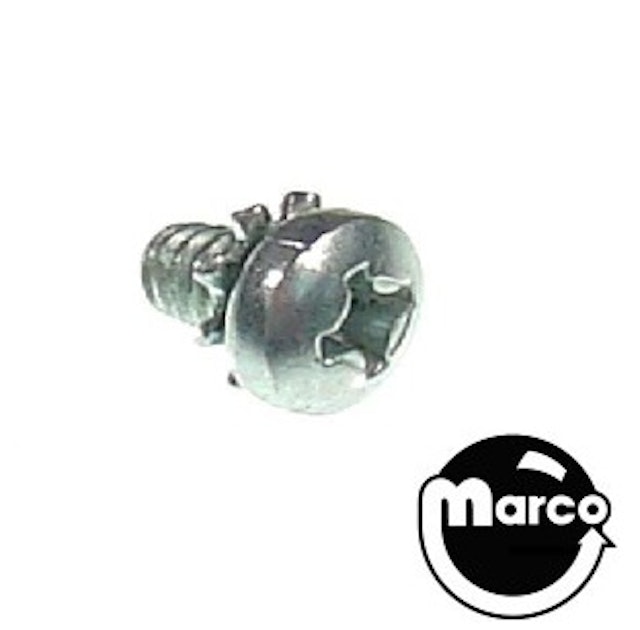

Machine screw 8-32 X 1/4" pan head phillips sems. Many applications. Used...
Williams SLUGFEST baseball machine Bat coil stop bracket.
Roller stud bat unit Williams
Cap Screw 8-32 x 3/8 inch socket head
Bat drive arm Williams baseball
SLUGFEST (Williams) Bracket - solenoid
SLUGFEST (Williams) Roller
Spring - extension
fw .172x .375x .036 brass
Coil - solenoid
Offset adjustable metal playfield post. Reference: 02-2732
Hairpin retaining clip used to secure shafts and studs on many mechanical assemblies.
SLUGFEST (Williams) Bracket - ball flap
lock washer #8 split
2-3/16 x 1/2 inch coil sleeve. Replaces 545-5388-00
Flat washer used in ball shoooter assemblies .390 x .625 x .059 inch.
Clip - hairpin

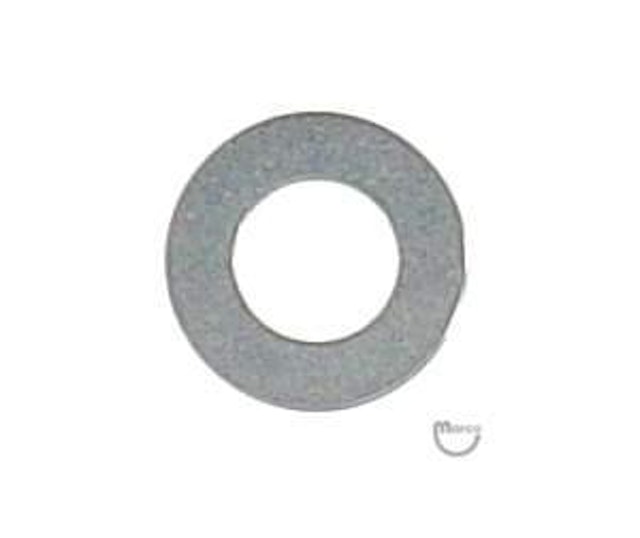

Washer .265 x .500 x .015 inches
fw .250 X.500x.032
Nut with 10-32 thread and elastic stop top (esn) 238-1306-00
Elastic stop nut used on the thumper bumper brackets and other mechanisms.
