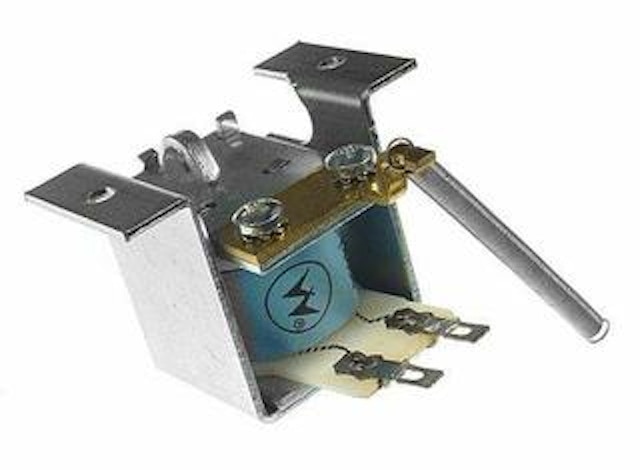

Ball gate actuator assembly
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
Ball gate actuator assembly
Ships un-assembled
Reference:
A-14422 ball gate assembly

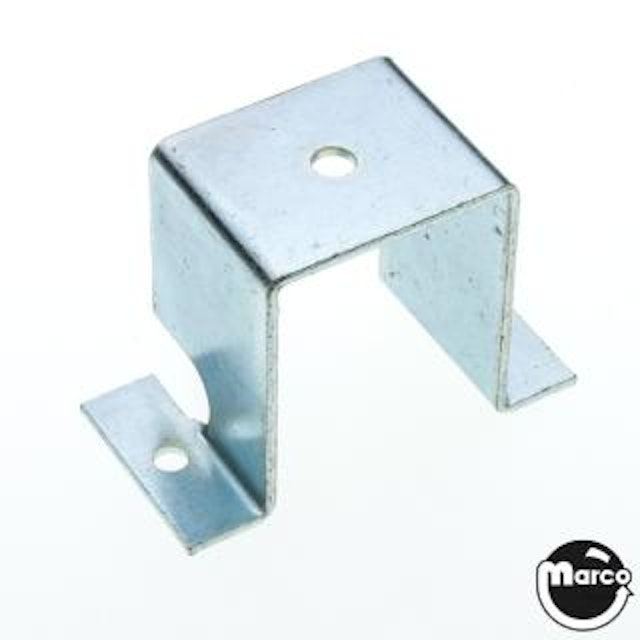

01-8111 bracket ball gate
10-120 spring-armature
10-194 spring-extension
4008-01021-07 machine screw 8-32 x 7/16 p-rh-brass
4700-00089-00 flat washer .172 x .437 x .062 brass
4701-00003-00 lw #8 split
A-11146 b/g armature assembly
A-14406 coil assembly
A-6892 frame & eyelet assy
